Overview

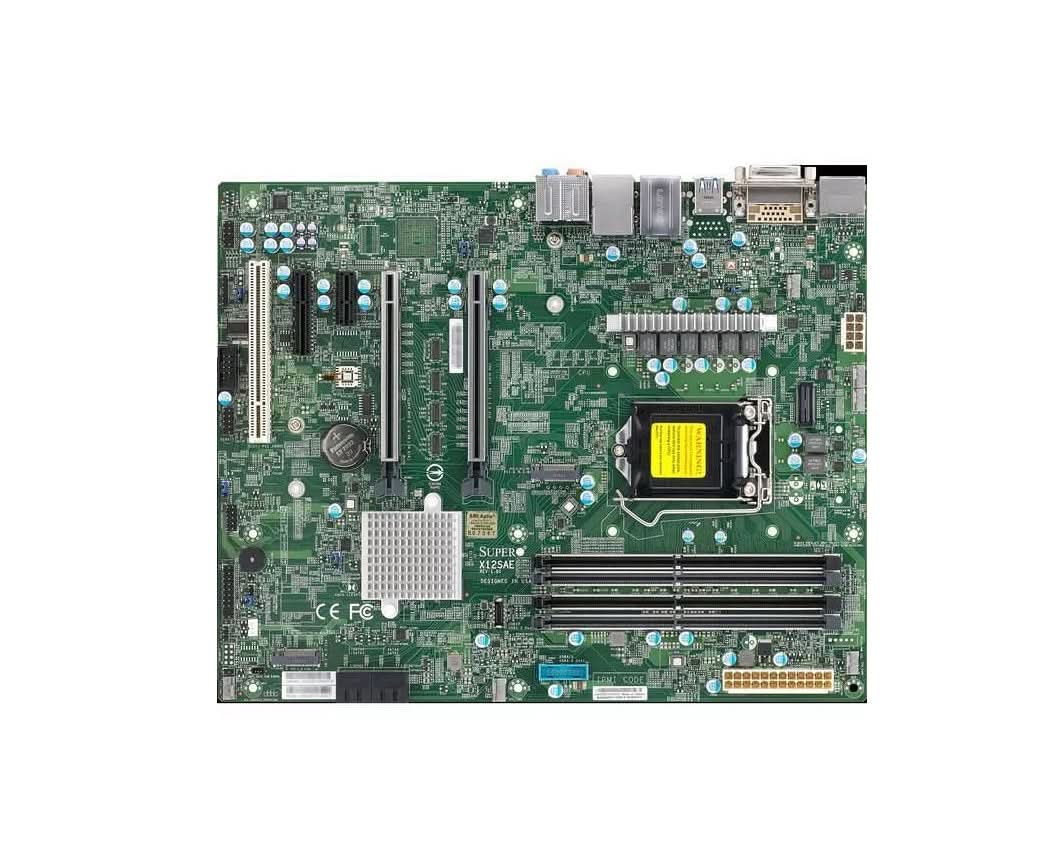

The Supermicro MBD-X12SAE-O is a professional ATX workstation motherboard designed for 10th Generation Intel Core and Xeon W-1200 series processors. The "-O" suffix indicates a Retail Pack version that includes essential accessories such as SATA cables and an I/O shield.



Specifications

Model Number:  MBD-X12SAE-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SAE-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SAE-O

Series:  W‑1200

Processor Type:  Intel Xeon

Processor Socket:  LGA-1200 (Socket H5)

Processor Generation:  10th Gen

Chipset Type:  Intel W480

Storage Interfaces:  4 × SATA III (6 Gb/s) ports

Network:  Dual LAN (2.5 Gb + 1 Gb)

USB:  USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports

Video Outputs: Includes 1 HDMI, 1 DisplayPort, and 1 DVI-D port for multi-display setups

Audio:  7.1 HD Audio via Realtek ALC888S codec

RAID:  RAID 0, 1, 5, and 10

Memory Supported:   128GB

Memory Speed:  2933MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  PCIe 3.0 x4

Error Detection:  ECC

TDP:  Up to 125 W

Form Factor:  ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
