Overview

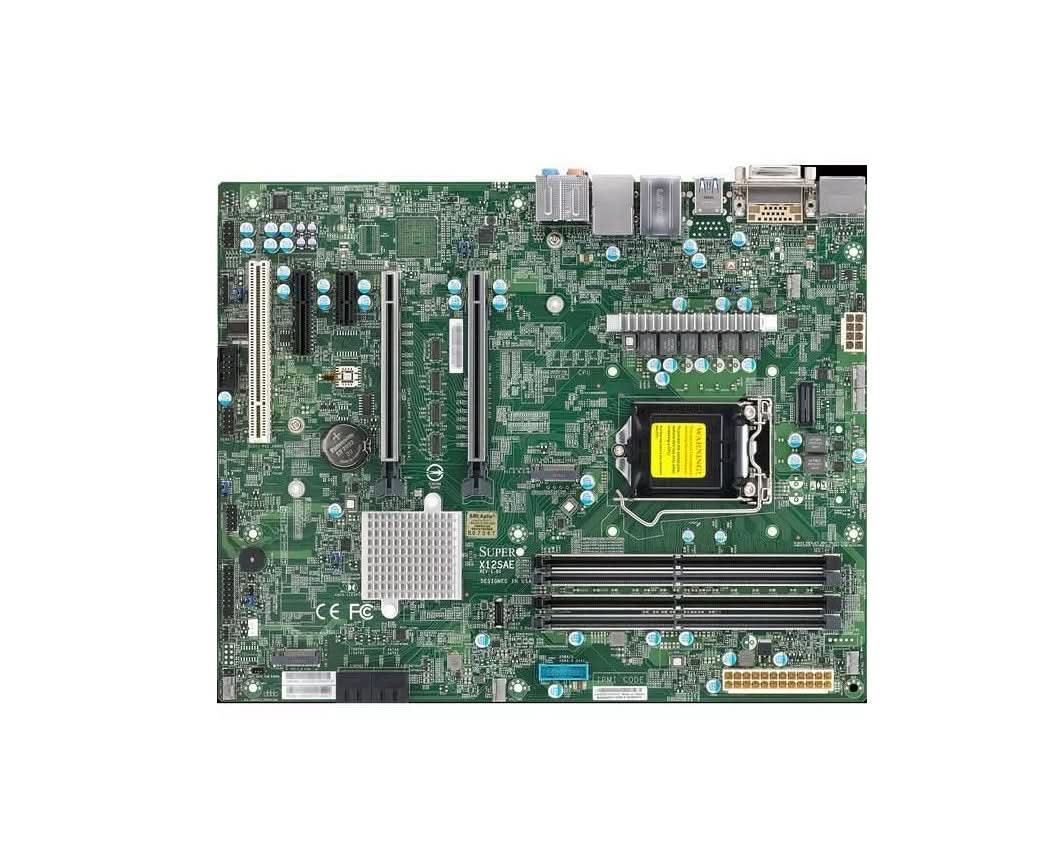

The Supermicro MBD-X12SAE-B is a professional-grade ATX workstation motherboard based on the Intel W480 chipset. The "-B" suffix indicates the Bulk Pack version, typically used by system integrators, which comes in a plain brown box and usually includes only the motherboard and essential I/O shield/cables.



Specifications

Model Number:  MBD-X12SAE-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X12SAE-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12SAE-B

Series:  W-1200

Processor Type:  Intel Xeon

Processor Socket:  LGA 1200 (Socket H5)

Chipset Type:  Intel W480

Storage Interfaces:  4 x SATA3 (6Gbps) ports

Network:  1 x 2.5GbE LAN port (Intel i225V),1 x 1GbE LAN port (Intel PHY i219LM)

Video Output:  1 x HDMI, 1 x DisplayPort, 1 x DVI-D

USB:  USB 3.2 Gen 2 (10Gbps) Type-A and Type-C ports, plus USB 3.2 Gen 1 and USB 2.0

Audio:  7.1 HD Audio (Realtek ALC888S)

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2600 BMC

Memory Supported:   128GB

Memory Speed:  2933MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 4.0 ×16

Error Detection:  ECC

TDP:  Up to 125W

Form Factor:  ATX
