Overview

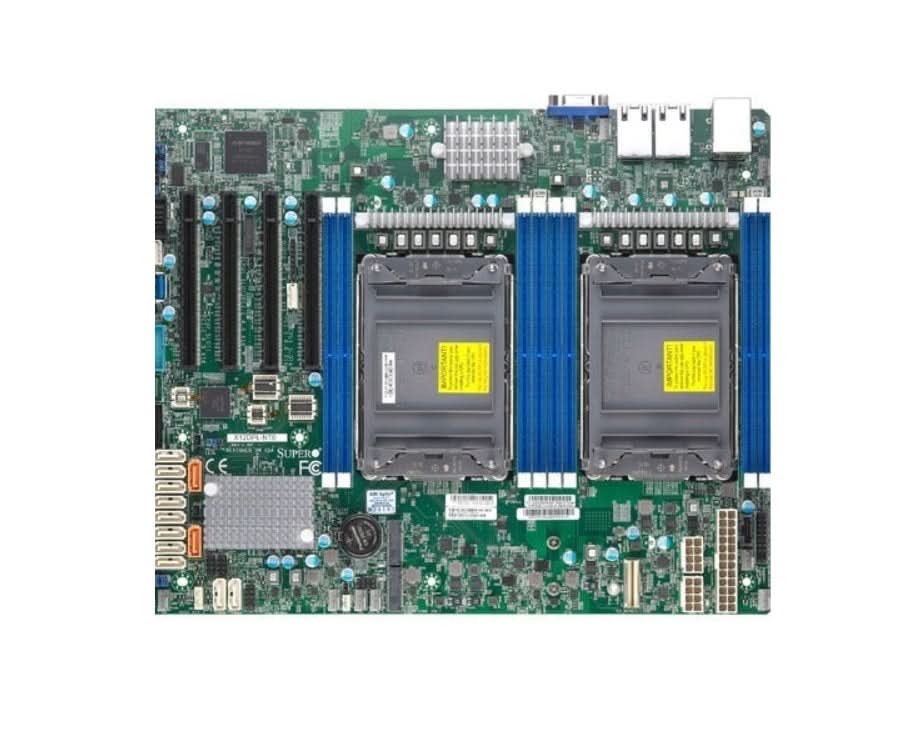

The MBD-X12DPL-I6-O is a dual-socket ATX server motherboard built on the Intel® C621A chipset, supporting 3rd Gen Intel® Xeon® Scalable CPUs, up to 2 TB of ECC DDR4 memory, extensive PCIe 4.0 expansion, 12 SATA3 ports plus dual M.2 support, dual Gigabit LAN, and full IPMI remote management — ideal for enterprise servers, virtualization hosts, and high-performance compute/storage systems.



Specifications

Model Number:  MBD-X12DPL-I6-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X12DPL-I6-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X12DPL-I6-O

Processor Type:  Intel Xeon Scalable

Processor Socket:  Dual LGA‑4189

Processor Generation:  3rd Gen

Chipset Type:  Intel C621A

Storage Interfaces:  12 SATA3 (6Gbps) ports, 2 PCIe 4.0 x4 M.2

Network:  Dual Gigabit Ethernet (1GbE) LAN ports via the Intel i210

USB:  1 VGA port, 2 USB 3.2 Gen 1 ports, and an internal COM header

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2600 BMC

Memory Supported:   2TB

Memory Type:  DDR4

Memory Slots:  8 DIMM slots

Expansion Slots:  4 PCIe 4.0 x16

Error Detection:  ECC

TDP:  185W

Form Factor:  ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
