Overview

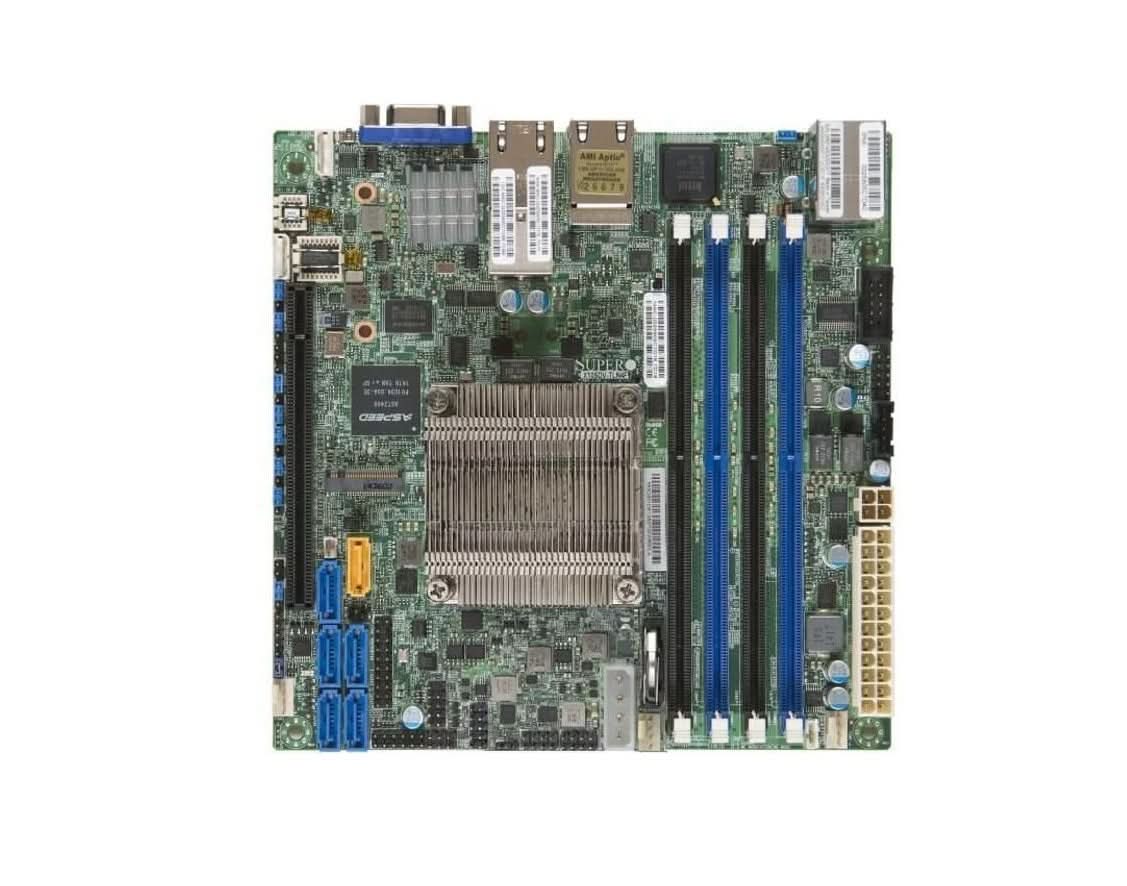

The Supermicro MBD-X11SSV-Q-B is a high-performance Mini-ITX motherboard based on the Intel Q170 Express chipset, designed for embedded applications such as medical devices, surveillance, and digital kiosks. The "-B" suffix signifies bulk packaging, typically intended for system integrators and shipping without retail box accessories.



Specifications

Model Number:  MBD-X11SSV-Q-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SSV-Q-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SSV-Q-B

Processor  Type:  Intel Core i7, i5, i3

Processor Socket:  LGA-1151 (Socket H4)

Processor Generation:  6th/7th Gen

Chipset Type:  Intel Q170

Storage Interfaces:  5 SATA3 (6Gbps) ports

Networking:  Dual GbE ports powered by the Intel i219LM and Intel i210-AT controllers

Display Support:  Supports 3 via 1 HDMI port, 1 DisplayPort (DP), and 1 DVI-I port

USB:  Includes up to 6 USB 3.0 ports and 5 USB 2.0 ports

Integrated Graphics:  Intel HD Graphics

Memory Supported:  32GB

Memory Technology:  DDR4

Memory Slots:  2 DIMM slots

Expansion Slots:  PCIe 3.0 x16, 1 Mini-PCIe

Error Detection:  Non-ECC

TDP:  91-95W

Power Input:  12 V DC

Form Factor:  Mini ITX
