Overview

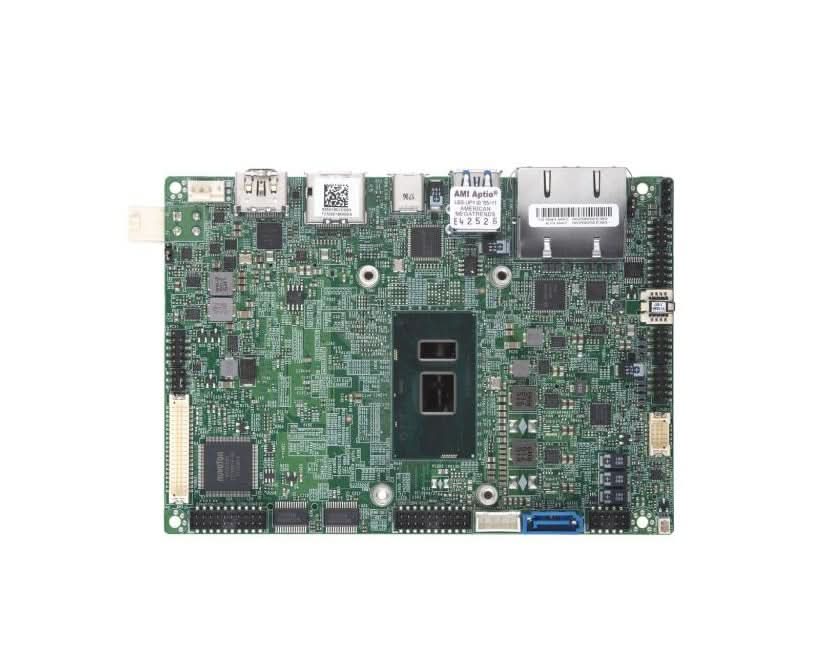

The Supermicro MBD-X11SSN-L-WOHS-B is a 3.5" Single Board Computer (SBC) designed for embedded and IoT applications, featuring an integrated 7th Gen Intel Core i3 processor. The "WOHS" suffix indicates the unit is shipped without a heatsink, and the "-B" denotes a bulk pack for system integrators.



Specifications

Model Number:  MBD-X11SSN-L-WOHS-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SSN-L-WOHS-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SSN-L-WOHS-B

Processor Type:  Intel Core i3‑7100U

Processor Core:  2-Cores / 4 threads

Processor Cache:  3MB

Processor Socket:  FCBGA‑1356

Processor Generation:  7th Gen

Storage Interfaces:  1 × SATA3 (6 Gb/s)

Network:  Dual (GbE) LAN ports via Intel PHY i219LM and i210IT

Display Output:  3 independent displays via 1x HDMI 2.0, 1x DisplayPort,1x 48-bit LVDS

Memory Supported:   32GB

Memory Type:  DDR4

Memory Slots:  2 SO‑DIMM

Expansion Slots:  1x Full-size Mini-PCIe slot

Error Detection:  Non‑ECC

TDP:  Up to 15 W

Fan Header:  1 × 4‑pin

Power Input:  12V DC

Form Factor:  3.5" SBC

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
