Overview

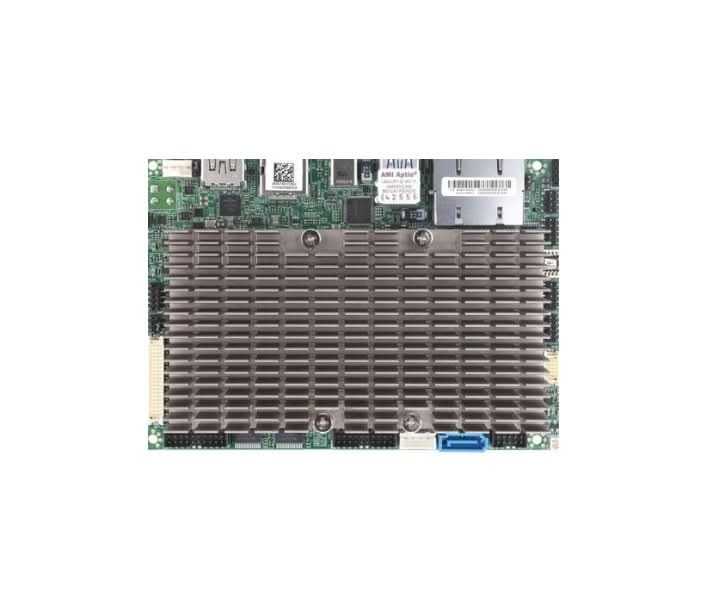

The Supermicro MBD-X11SSN-E-B is a high-performance 3.5" Single Board Computer (SBC) designed for embedded and industrial applications. It features an integrated 7th Generation Intel Core i5-7300U processor and supports up to 32GB of DDR4 memory.



Specifications

Model Number:  MBD-X11SSN-E-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SSN-E-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SSN-E-B

Processor Type:  Intel Core i5

Processor Model:  7300U

Processor Core:  2 Cores, 4 threads

Processor Cache:  3MB

Processor Socket:  FCBGA1356

Processor Generation:  7th Gen

Storage Interfaces:  1 × SATA-III (6 Gbps)

Network:  Dual Gigabit Ethernet LAN ports by Intel i219LM and i210IT controllers

USB:  USB 3.0 ports and one USB 3.2 Gen 2 Type-C port

Video Outputs: 1 HDMI 2.0 port, one DisplayPort (DP++), and one 48-bit LVDS port

Graphics:  Intel HD Graphics

Memory Supported:  32GB

Memory Speed:  2133MHz

Memory Type:  DDR4

Memory Slots:  2 DIMM slots

Expansion Slots:  one full-size Mini-PCIe slot

Error Detection:   Non-ECC

Cooling:  1 × 4-pin fan header with PWM

TDP:  15W

Power Input:  12V DC

Form Factor:  3.5" SBC
