Overview

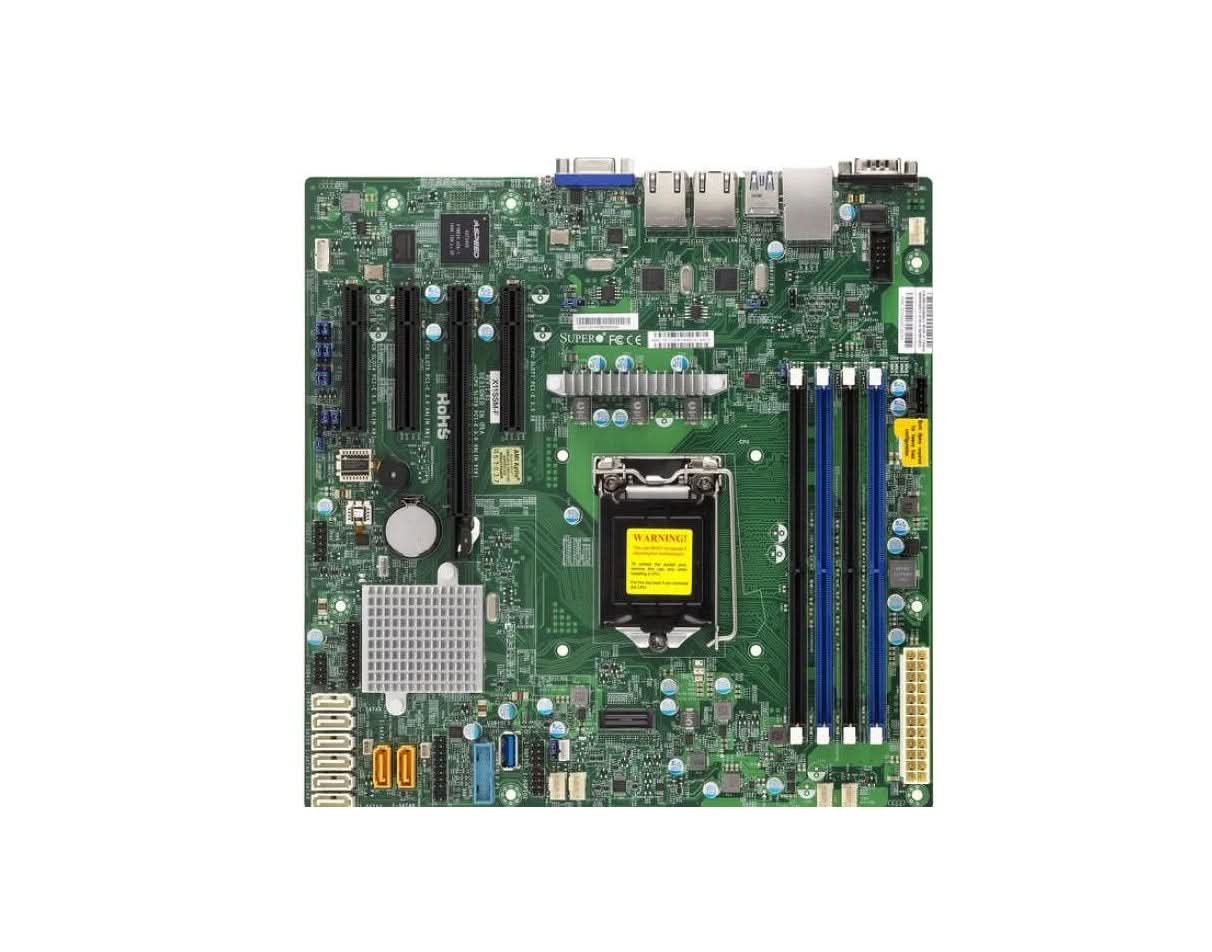

The Supermicro MBD-X11SSM-F-B is a Micro-ATX server motherboard featuring the Intel C236 chipset and a single LGA-1151 socket. It is designed for entry-level server and workstation platforms, offering support for Intel Xeon E3-1200 v6/v5 and 7th/6th Gen Core i3/Pentium/Celeron processors.



Specifications

Model Number:  MBD-X11SSM-F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SSM-F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SSM-F-B

Series:  E3-1200 v6/v5

Processor Type:  Intel Xeon

Processor Socket:  LGA-1151 (Socket H4)

Processor Generation:  7th/6th Gen

Chipset Type:  Intel C236

Storage Interfaces:  8 × SATA3 (6 Gb/s)

Network:  Dual Gigabit Ethernet ports powered by Intel i210-AT controllers

USB:  5 USB 3.0 ports (2 rear, 2 via header, 1 Type-A) and 6 USB 2.0 ports

Graphics:  ASPEED AST2400 BMC

Memory Supported:  64GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  4 × PCIe 3.0 x16,x8

Error Detection:  ECC

TDP:  80W

Form Factor:  Micro-ATX
