Overview

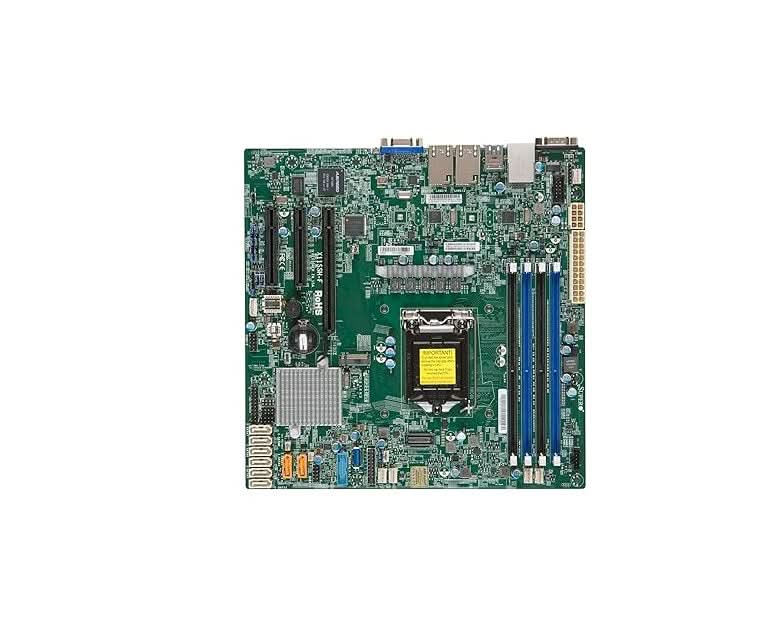

The Supermicro MBD-X11SSH-F-B is a professional server-grade motherboard in a Micro-ATX form factor, featuring the Intel C236 chipset and a single LGA 1151 (Socket H4). The "-B" suffix specifically denotes the Bulk Pack version, typically shipped in plain packaging for system integrators with essential accessories like an I/O shield and two SATA cables.



Specifications

Model Number:  MBD-X11SSH-F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SSH-F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SSH-F-B

Series:  E3-1200 v6/v5

Processor Type:  Intel Xeon Core i3

Processor Socket:  LGA 1151 (Socket H4)

Processor Generation:  7th/6th Gen

Chipset Type:  Intel C236

Storage Interfaces:  8 SATA3 (6Gbps) ports

Network:  Dual (1GbE) ports powered by the Intel i210-AT controller

USB:  Total of 11 USB ports, including 5x USB 3.0 and 6x USB 2.0 ports

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2400 BMC

Memory Supported:  64GB

Memory Speed:  2400MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  3 PCIe

Error Detection:  ECC

TDP:  80W

Form Factor:  Micro-ATX
