Overview

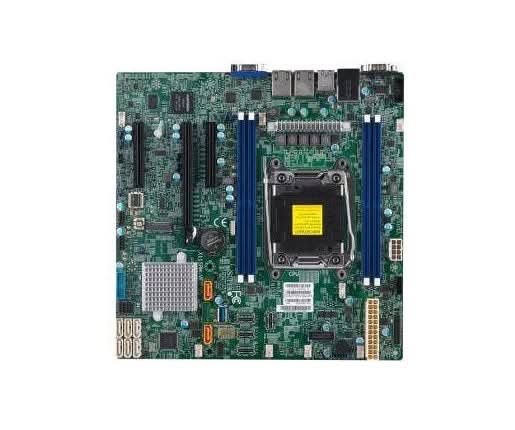

The MBD-X11SRM-VF-O is a microATX server/workstation motherboard engineered for Intel® Xeon® W-2100 and W-2200 processors with robust ECC memory support, multiple expansion slots, abundant storage options, dual Gigabit networking, and remote management (IPMI) — ideal for compact professional workstations or enterprise server applications requiring reliable performance and manageability.



Specifications

Model Number:  MBD-X11SRM-VF-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SRM-VF-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SRM-VF-O

Series:  W-2100/W-2200

Processor Type:  Intel Xeon

Processor Core:  18 cores / 36 threads

Processor Socket:  Socket R4 (LGA-2066)

Chipset Type:  Intel C422

Storage Interfaces:  8 SATA3 (6Gbps) ports

Network:  Dual 1GbE LAN ports using the Intel i210 Gigabit Ethernet controller

USB:  5 USB 3.0 ports (2 rear, 2 via header, 1 Type-A) and 6 USB 2.0 ports

Video Output:  1 VGA port

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Capacity:  128GB

Memory Supported:  256GB

Memory Type:  DDR4

Memory Slots:  4 DIMM 4-channel memory

Expansion Slots:  1 x PCIe 3.0 x16, 2 x PCIe 3.0 x8

Error Detection:  ECC

TDP:  Up to 140W

Form Factor:  MicroATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
