Overview

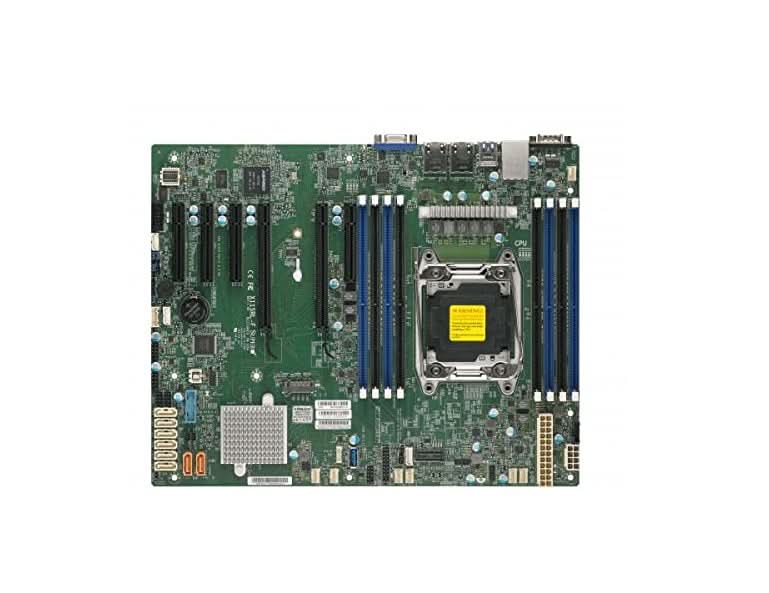

The Supermicro MBD-X11SRL-F-O is a high-performance single-socket ATX server motherboard featuring the Intel C422 chipset. It is specifically designed for workstation-class performance using the Intel Xeon W-2100 and W-2200 processor families.



Specifications

Model Number:  MBD-X11SRL-F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SRL-F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SRL-F-O

Series:  W-2100/W-2200

Processor Type:  Intel Xeon

Processor Core:  18 Cores / 36 threads

Processor Socket:  LGA-2066 (Socket R4)

Chipset Type:  Intel C422

Storage Interfaces:  8 SATA3 (6Gbps) ports

Network:  Dual Gigabit Ethernet ports powered by the Intel i210 controller

USB:  2 USB 3.0 ports, 2 USB 2.0 ports, 1 VGA port, and 1 COM port

RAID:  RAID 0, 1, 5, and 10

Memory Supported:  1TB

Memory Type:  DDR4

Memory Slots:  8 DIMM slots

Expansion Slots:  6

Error Detection:  ECC

Power Capacity:  165W

Form Factor:  ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
