Overview

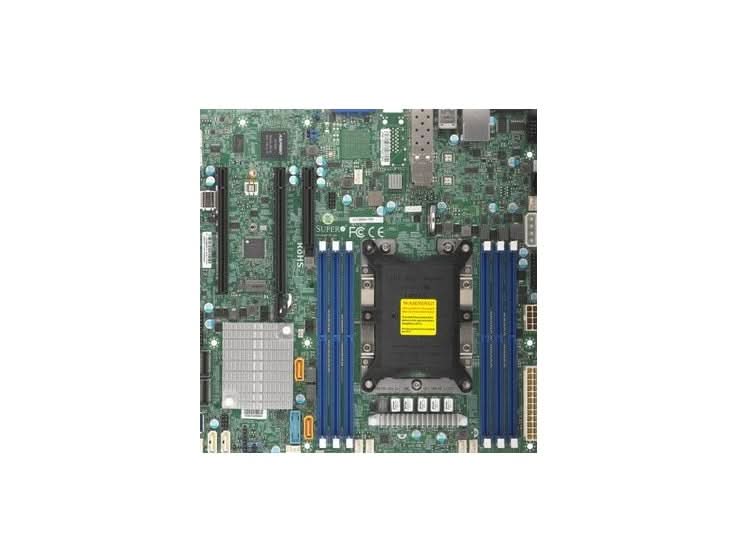

The Supermicro MBD-X11SPM-TPF-B is a high-performance Micro-ATX server motherboard featuring the Intel C622 chipset and a single LGA 3647 (Socket P). Designed for enterprise and embedded applications, it supports Intel Xeon Scalable processors and features advanced 10GbE SFP+ networking.



Specifications

Model Number:  MBD-X11SPM-TPF-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SPM-TPF-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SPM-TPF-B

Processor Type:  Intel Xeon Scalable

Processor Model:  D-1541

Processor Core:  28-Cores

Processor Socket:  LGA 3647 (Socket P)

Processor Generation:  1st/2nd Gen

Chipset Type:  Intel C622

Storage Interfaces:  12 SATA3 (6Gbps) ports

Network:  Dual 10G SFP+ LAN ports by the Intel X722 + Inphi CS4227 controllers

USB:  total of 11 USB ports (including USB 3.0 and USB 2.0)

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:  1.5TB

Memory Type:  DDR4

Memory Slots:  6 DIMM slots

Expansion Slots:  2 × PCIe 3.0 x16, 1 × PCIe 3.0 x8

Error Detection:  ECC

TDP:  165W

Power Input:  12V DC

Form Factor:  Micro-ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
