Overview

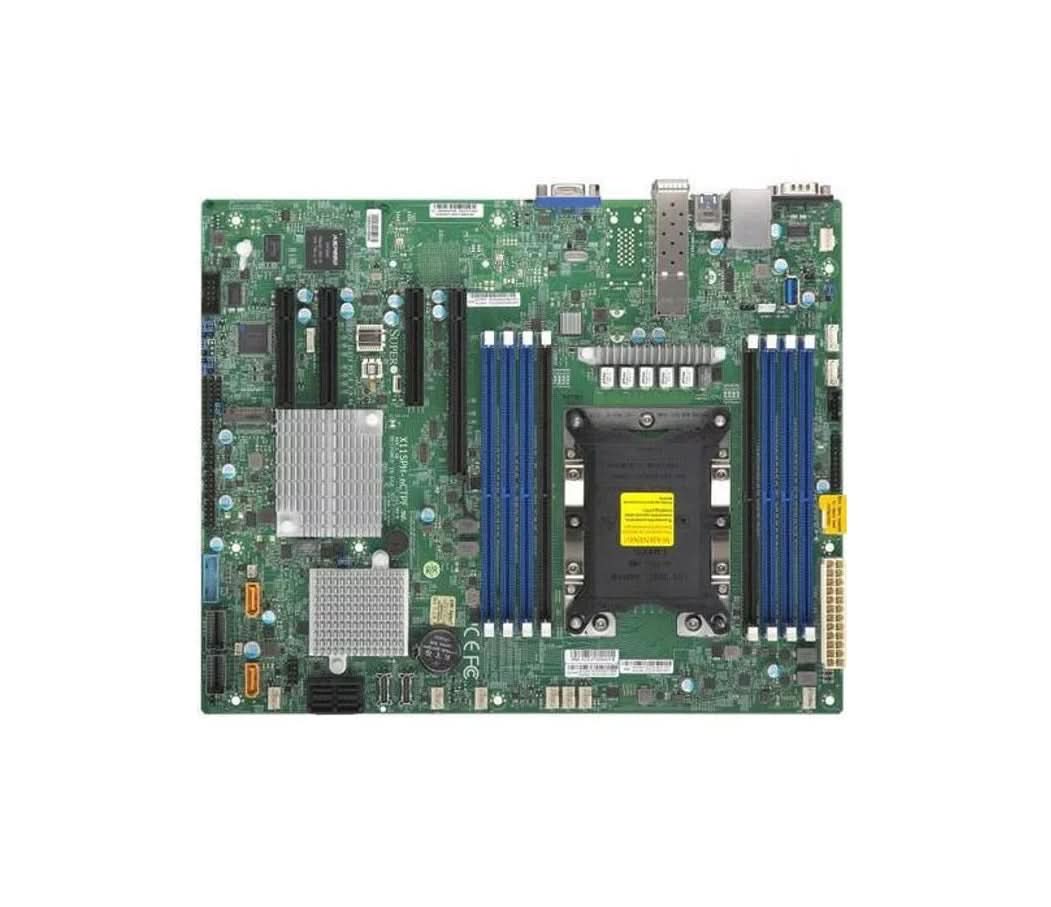

The Supermicro MBD-X11SPH-NCTPF-B is a high-end ATX server motherboard from the X11 generation, specifically designed for storage-intensive and high-performance computing (HPC) applications. The "-B" suffix indicates bulk packaging, which typically includes the motherboard without the retail retail box.



Specifications

Model Number:  MBD-X11SPH-NCTPF-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SPH-NCTPF-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SPH-NCTPF-B

Processor Type:  Intel Xeon Scalable

Processor Core:  28-Cores

Processor Socket:  LGA-3647

Processor Generation:  2nd Gen

Chipset Type:  Intel C622

Storage Interfaces:  10 × SATA3 (6 Gbps) ports,8 × SAS3 (12 Gbps) via Broadcom 3008

Network:  Dual 10G SFP+ ports powered by the Intel X722 controller

USB:  Multiple USB (approx. 5 × USB 3.0 + 8 × USB 2.0

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:   2TB

Memory Speed:  2933MHz

Memory Type:  DDR4

Memory Slots:  8 DIMM slots

Expansion Slots:  1 × PCIe 3.0 x16 (x16 or x8)

Error Detection:  ECC

TDP:  205W

Form Factor:  ATX
