Overview

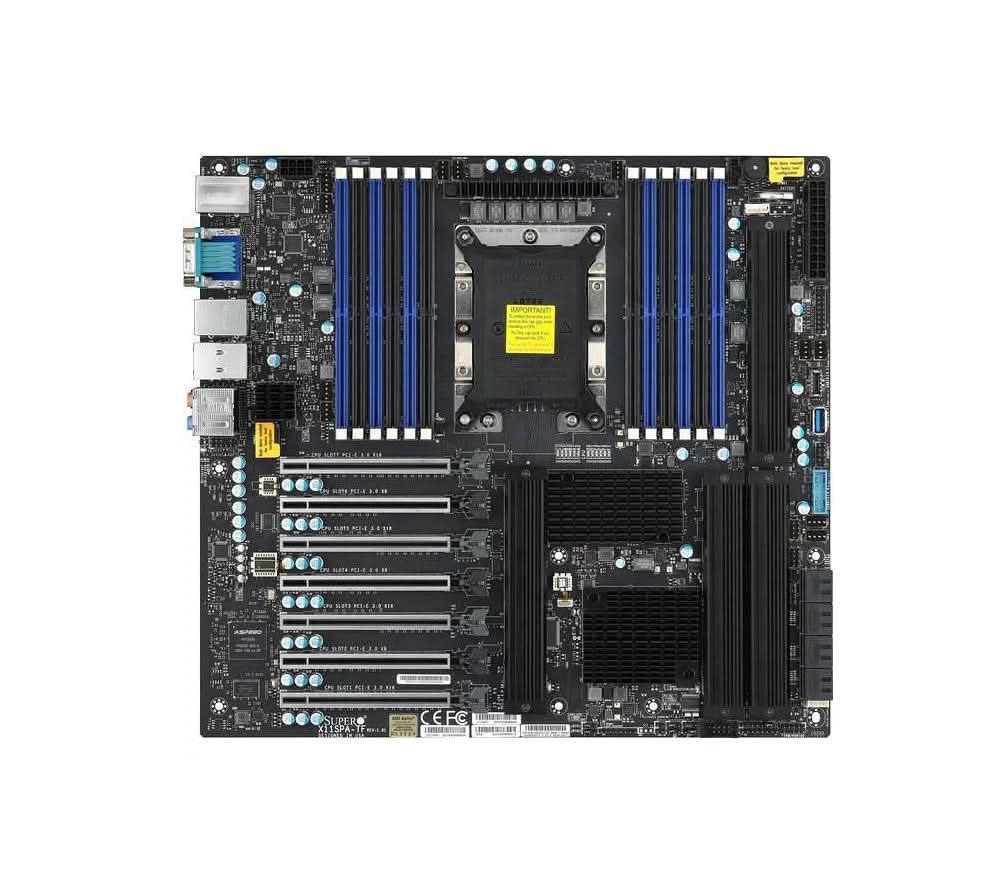

The Supermicro MBD-X11SPA-TF-O is a high-performance Extended ATX (E-ATX) workstation motherboard designed for the Intel C621 chipset. It features a single LGA 3647 (Socket P), specifically engineered to support 1st and 2nd Gen Intel Xeon Scalable processors for simulation, AI optimization, and deep learning workloads.



Specifications

Model Number:  MBD-X11SPA-TF-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SPA-TF-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SPA-TF-O

Processor Type:  Intel Xeon Scalable

Processor Core:  28-Cores

Processor Socket:  LGA-3647 (Socket P)

Processor Generation:  2nd Gen

Chipset Type:  Intel C621

Storage Interfaces:  8 SATA3 (6Gbps) ports

Network:  1x 10GBase-T, 1x GBE Intel I210-AT), and 1x Dedicated IPMI LAN

USB Ports:  Total of 12 ports, including USB 3.1 Gen 2 and USB 3.1 Gen 1

RAID:  RAID 0, 1, 5, and 10

Audio:  7.1 HD Audio (Realtek ALC888S)

Graphics:  ASPEED AST2500 BMC

Memory Supported:  3TB

Memory Speed:  2933MHz

Memory Type:  DDR4

Memory Slots:  12 DIMM slots

Expansion Slots:  PCIe 3.0 x16, 3 PCIe 3.0 x8

Error Detection:  ECC

TDP:  205W

Form Factor:  E-ATX
