Overview

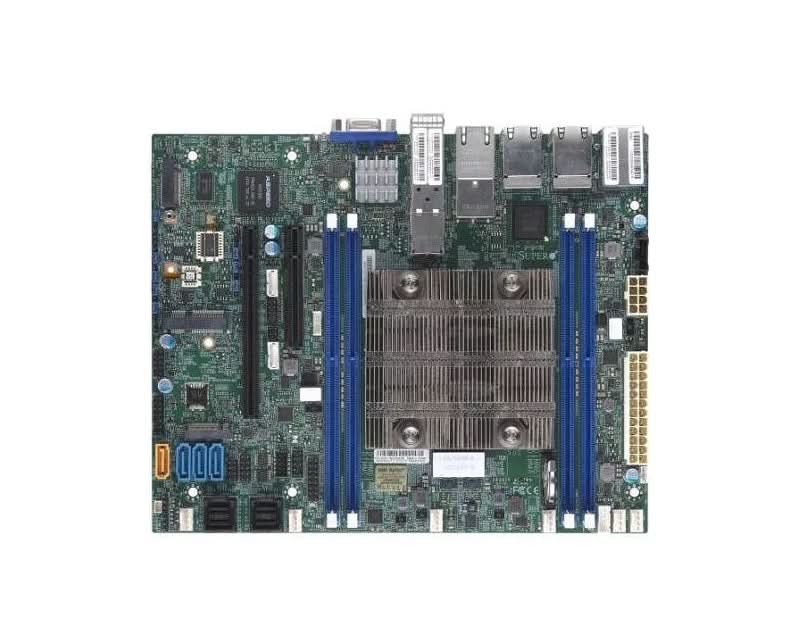

The Supermicro MBD-X11SDV-4C-TP8F-O is a Flex ATX server motherboard featuring an integrated Intel Xeon D-2123IT processor, designed for high-density networking and storage applications. The "-O" suffix indicates the Retail Pack version, which includes standard accessories like the I/O back cover.



Specifications

Model Number:  MBD-X11SDV-4C-TP8F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SDV-4C-TP8F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SDV-4C-TP8F-O

Processor Type:  Intel Xeon

Processor Model:  D‑2123IT

Processor Core:  4 cores / 8 threads

Processor Speed:  2.2GHz base clock (up to 3.0GHz Turbo)

Processor Socket:  BGA

Chipset Type:  SoC

Storage Interfaces:  12 × SATA3 (6 Gb/s)

Network:  8 total LAN ports

USB:  2 USB 3.0 ports on the rear I/O and 2 USB 2.0 ports

Graphics:  ASPEED AST2500 BMC

Memory Capacity:  256GB

Memory Supported:  512GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 PCIe 3.0 x16 slot and 1 PCIe 3.0 x8 slot

Error Detection:  ECC

TDP Support:  Up to 60W

Form Factor:  Flex ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
