Overview

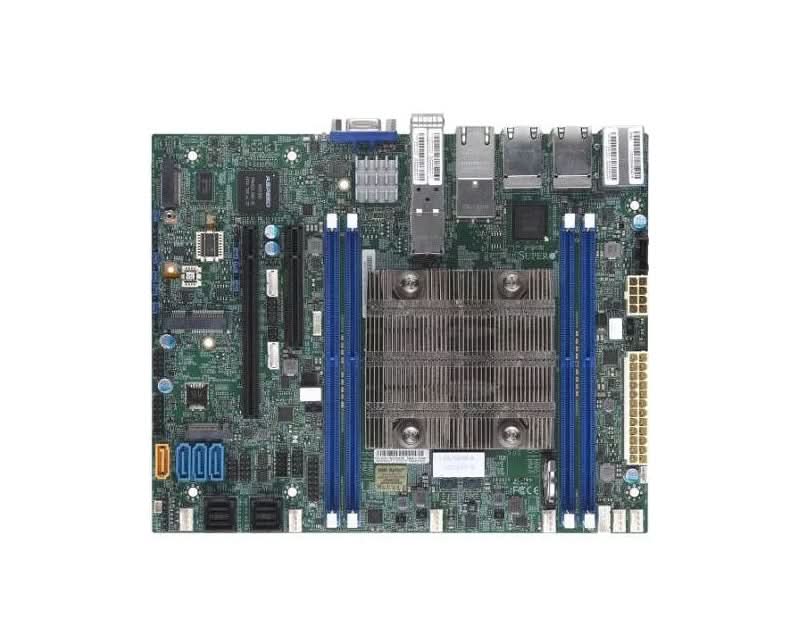

The Supermicro MBD-X11SDV-4C-TP8F-B is a Flex ATX server-grade motherboard featuring an integrated Intel Xeon D-2123IT processor, designed for high-performance embedded networking and storage systems.



Specifications

Model Number:  MBD-X11SDV-4C-TP8F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SDV-4C-TP8F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SDV-4C-TP8F-B

Processor Type:  Intel Xeon

Processor Model:  D-2123IT

Processor Core:  4 Cores, 8 Threads

Processor Clock Speed:  2.2GHz Base, up to 3.0GHz Turbo

Chipset Type:  System on Chip

Storage Interfaces:  12x SATA3 (6 Gbps) ports

Network:  4x 1GbE RJ45 LAN ports via Intel I350-AM4 controller

RAID:  RAID 0, 1, 5, 10

Graphics:  ASPEED AST2500 BMC

Memory Capacity:  256GB

Memory Supported:   512GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 4.0 ×16

Error Detection:  ECC

TDP:  60W

Power Input:  12V DC

Form Factor:  Flex ATX
