Overview

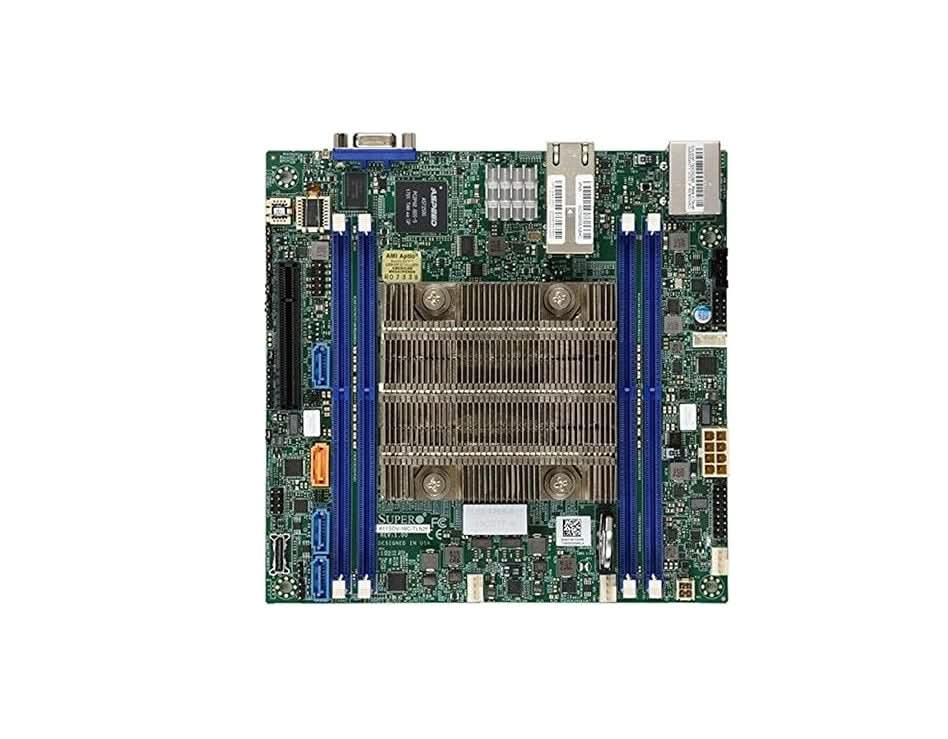

The Supermicro MBD-X11SDV-12C-TLN2F-O is a high-performance Mini-ITX server motherboard featuring an integrated 12-core Intel Xeon D-2166NT processor. Designed for embedded networking and high-density compute applications, it offers advanced storage and networking options including dual 10GbE LAN ports.



Specifications

Model Number:  MBD-X11SDV-12C-TLN2F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SDV-12C-TLN2F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SDV-12C-TLN2F-O

Processor Type:  Intel Xeon

Processor Model:  D-2166NT

Processor Speed:  2.00GHz (3.00GHz)

Processor Cache:  17MB

Processor Core:  12Cores, 24 threads

Storage Interfaces:  8 × SATA3 (6 Gb/s)

Network:  Dual 10GBase-T (RJ45) ports, plus a dedicated RJ45 port for IPMI 2.0

USB:  2 USB 3.0 ports

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Capacity:  256GB

Memory Supported:  512GB

Memory Speed:  2133MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 3.0 x8

Error Detection:  ECC

Fan Headers:  Up to 3 × 4-pin PWM fan headers

TDP:  85W

Power Input:  12 V DC

Form Factor:  Mini-ITX
