Overview

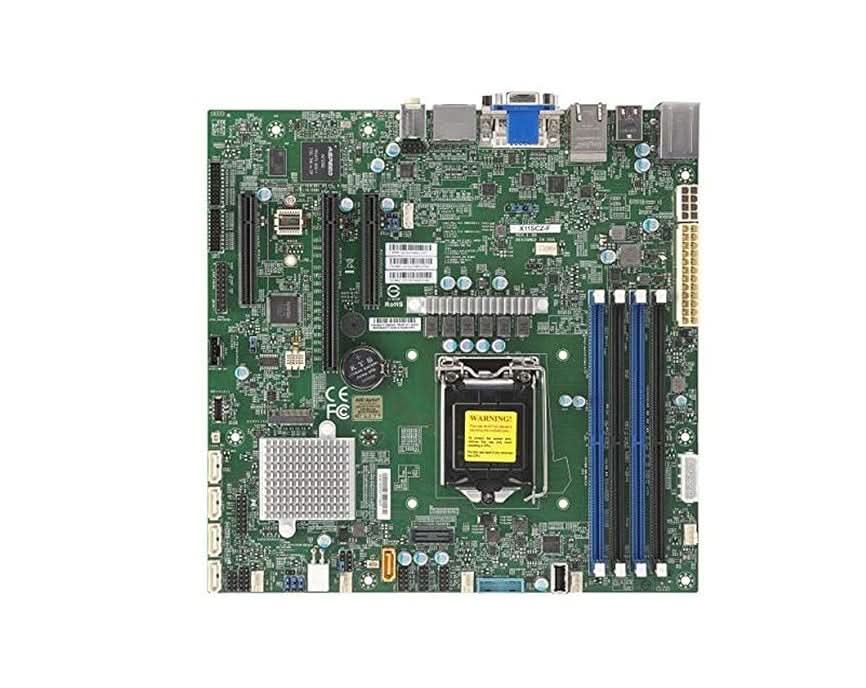

The Supermicro MBD-X11SCZ-F-O is a workstation-class Micro-ATX motherboard built on the Intel C246 chipset. The "-O" suffix indicates the Retail Pack version, which typically includes accessories such as an I/O shield and SATA cables.



Specifications

Model Number:  MBD-X11SCZ-F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SCZ-F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SCZ-F-O

Series:  E‑2100/E‑2200

Processor Type:  Intel Xeon

Processor Socket:  LGA‑1151

Processor Generation:  8th/9th Gen

Chipset Type:  Intel C246

Storage Interfaces:  5 × SATA3 (6 Gb/s) ports

Network:  Dual Gigabit ports Intel I210-AT and Intel PHY I219LM controllers

Display Output:  3 independent displays via 2x DisplayPort, 1x DVI-I, and 1x VGA port

USB:  USB 2.0, USB 3.1 Gen1 & Gen2

RAID:  RAID 0, 1, 5, 10.

Audio:  ALC888S

Graphics:  ASPEED AST2500 BMC

Memory Supported:  128GB

Memory Type:  DDR4

Memory Slots:  4 UDIMM

Expansion Slots:  1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x4 slot

Error Detection:  ECC/non-ECC

TDP Support:  95W

Form Factor:  Micro‑ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
