Overview

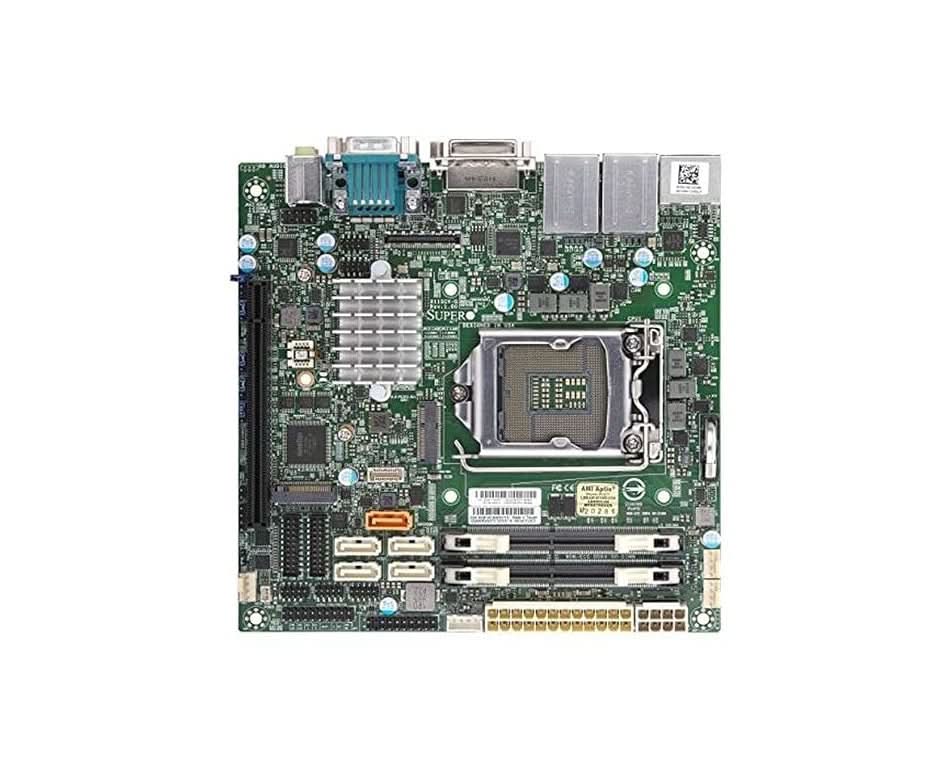

The Supermicro MBD-X11SCV-Q-O is a professional Mini-ITX motherboard featuring the Intel Q370 chipset. It is designed for compact embedded applications, mini-servers, and kiosks, offering a blend of desktop-grade performance and workstation-level manageability through Intel vPro technology.



Specifications

Model Number:  MBD-X11SCV-Q-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SCV-Q-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SCV-Q-O

Processor Type:  Intel Core i3/i5/i7/i9

Processor Socket:  LGA-1151 (Socket H4)

Processor Generation:  8th/9th Gen

Chipset Type:  Intel Q370

Storage Interfaces:  5 SATA3 (6Gbps) ports

USB:  10 USB ports total, including USB 3.1 Gen 2 Type-A and Type-C rear ports

Audio:  Powered by the Realtek ALC888S

Network:  2 × 1 GbE LAN

Video:  DVI-D, HDMI, DP, eDP

RAID:  RAID 0, 1, 5, and 10

Memory Supported:  64GB

Memory Speed:  2666MHz

Memory Type:  DDR4

Memory Slots:  2 SO-DIMM slots

Expansion Slots:  PCIe 3.0 x16

Error Detection:  Non-ECC

TDP:  Up to 65W

Power Input:  12V DC

Form Factor:  Mini-ITX
