Overview

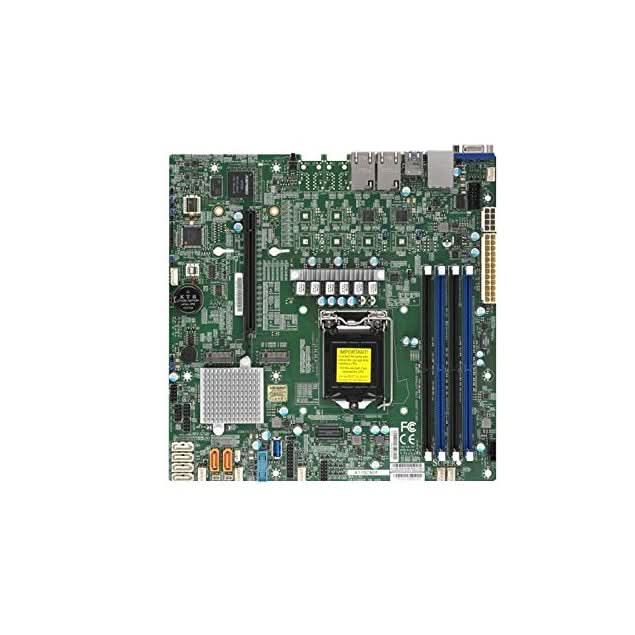

The Supermicro MBD-X11SCM-F-O is a server-grade Micro-ATX motherboard utilizing the Intel C246 chipset. Designed for single-socket entry-level servers, it supports 8th and 9th Generation Intel processors and features dual Gigabit LAN and dual M.2 slots for high-performance storage.



Specifications

Model Number:  MBD-X11SCM-F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SCM-F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SCM-F-O

Series:  E-2100/E-2200

Processor Type:  Intel Xeon

Processor Core:  8-Core/16 threads

Processor Socket:  LGA-1151 (Socket H4)

Processor Generation:  8th/9th Gen

Chipset Type:  Intel C246

Storage Interfaces:  6 × SATA3

Network:  Dual Gigabit Ethernet ports using the Intel i210-AT controller

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:  128GB

Memory Speed:  2666MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 3.0 ×16; M.2 ×2 (PCIe/SATA)

Error Detection:  ECC

TDP:  95W

Form Factor:  MicroATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
