Overview

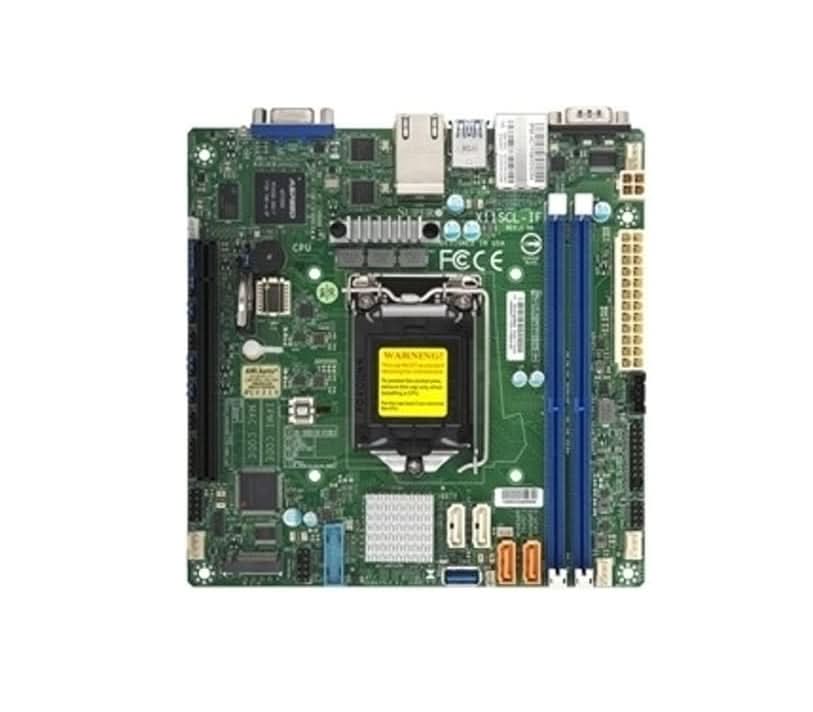

The Supermicro MBD-X11SCL-IF-B is a professional server-grade Mini-ITX motherboard based on the Intel C242 chipset. The "-B" suffix indicates Bulk Packaging, typically including the motherboard, an I/O shield, and two SATA cables, designed for system integrators rather than retail consumers.



Specifications

Model Number:  MBD-X11SCL-IF-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SCL-IF-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SCL-IF-B

Series:  E-2100/E-2200

Processor Type:  Intel Xeon

Processor Core:  6 Cores/12 threads

Processor Socket:  LGA 1151 (Socket H4)

Processor Generation:  8th/9th Gen

Chipset Type:  Intel C242

Storage Interfaces:  4 × SATA3 + 1 × M.2 PCIe/SATA

Network:  Dual 1GbE LAN ports powered by the Intel i210-AT controller

USB:  Multiple USB2.0 + USB3.x ports

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:  64GB

Memory Type:  DDR4

Memory Slots:  2 DIMM slots

Expansion Slots:  1 × PCIe 3.0 x16

Error Detection:  ECC

TDP:  95W

Form Factor:  Mini‑ITX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
