Overview

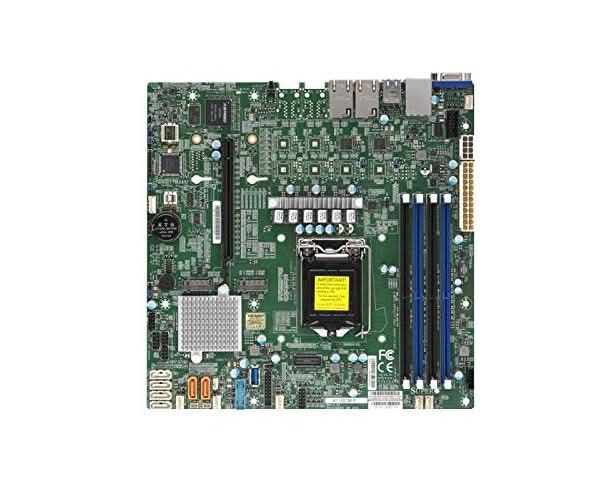

The Supermicro MBD-X11SCH-LN4F-B is a professional-grade server motherboard in a Micro-ATX form factor featuring the Intel C246 chipset. The "-B" suffix specifically indicates Bulk Packaging, meaning the board is shipped in plain boxes intended for system integrators, usually including essential accessories like an I/O shield and SATA cables but lacking full retail manuals.



Specifications

Model Number:  MBD-X11SCH-LN4F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SCH-LN4F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SCH-LN4F-B

Series:  E-2100/E-2200

Processor Type:  Intel Xeon

Processor Core:  8 Cores/16 threads

Processor Socket:  LGA 1151 (Socket H4)

Processor Generation:  8th/9th Gen

Chipset Type:  Intel C246

Storage Interfaces:  8 × SATA3 + 2 × M.2 PCIe/SATA

Network:  Quad-port Gigabit Ethernet (1GbE) using the Intel i210 controller

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:  128GB

Memory Speed:  2666MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  2 × PCIe 3.0 ×8

Error Detection:  ECC

TDP:  95W

Form Factor:  Micro-ATX
