Overview

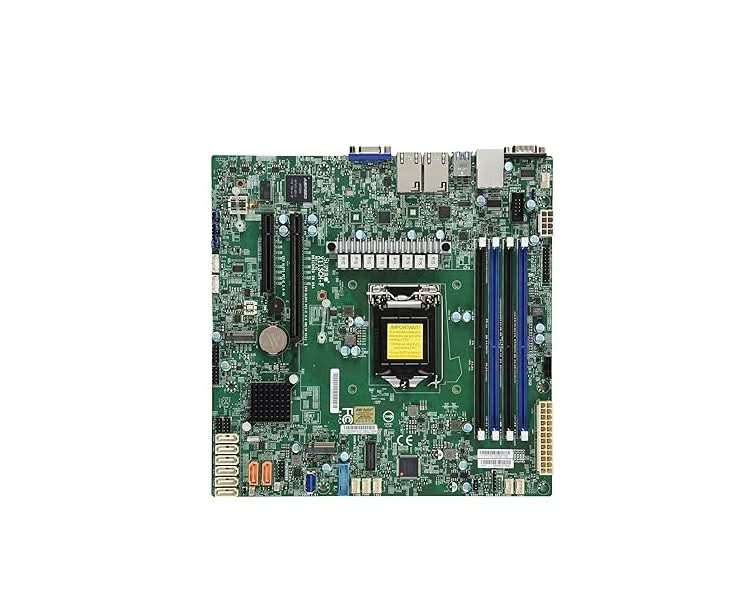

The Supermicro MBD-X11SCH-F-O is a server-grade Micro-ATX motherboard built on the Intel C246 chipset. Optimized for high-performance computing and enterprise server applications, it supports 8th and 9th Generation Intel processors and features extensive I/O options including dual M.2 slots and dual Gigabit LAN.



Specifications

Model Number:  MBD-X11SCH-F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X11SCH-F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X11SCH-F-O

Series:  E-2100/E-2200

Processor Type:  Intel Core i3

Processor Socket:  LGA 1151 (Socket H4)

Processor Core:  8 Cores/16 threads

Processor Generation:  8th/9th Gen

Chipset Type:  Intel C246

Storage Interfaces:  8 SATA3 (6Gbps) ports

Network:  Dual Gigabit Ethernet ports using the Intel i210 controller

USB: Total of 11 ports,USB 3.1 Gen 2, USB 3.1 Gen 1, and USB 2.0 headers

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2500 BMC

Memory Supported:  128GB

Memory Speed:  2666MHz

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  2 × PCIe 3.0 ×8, 2 × M.2 (PCIe 3.0 ×4)

Error Detection:  ECC

TDP:  95W

Form Factor:  Micro‑ATX
