Overview

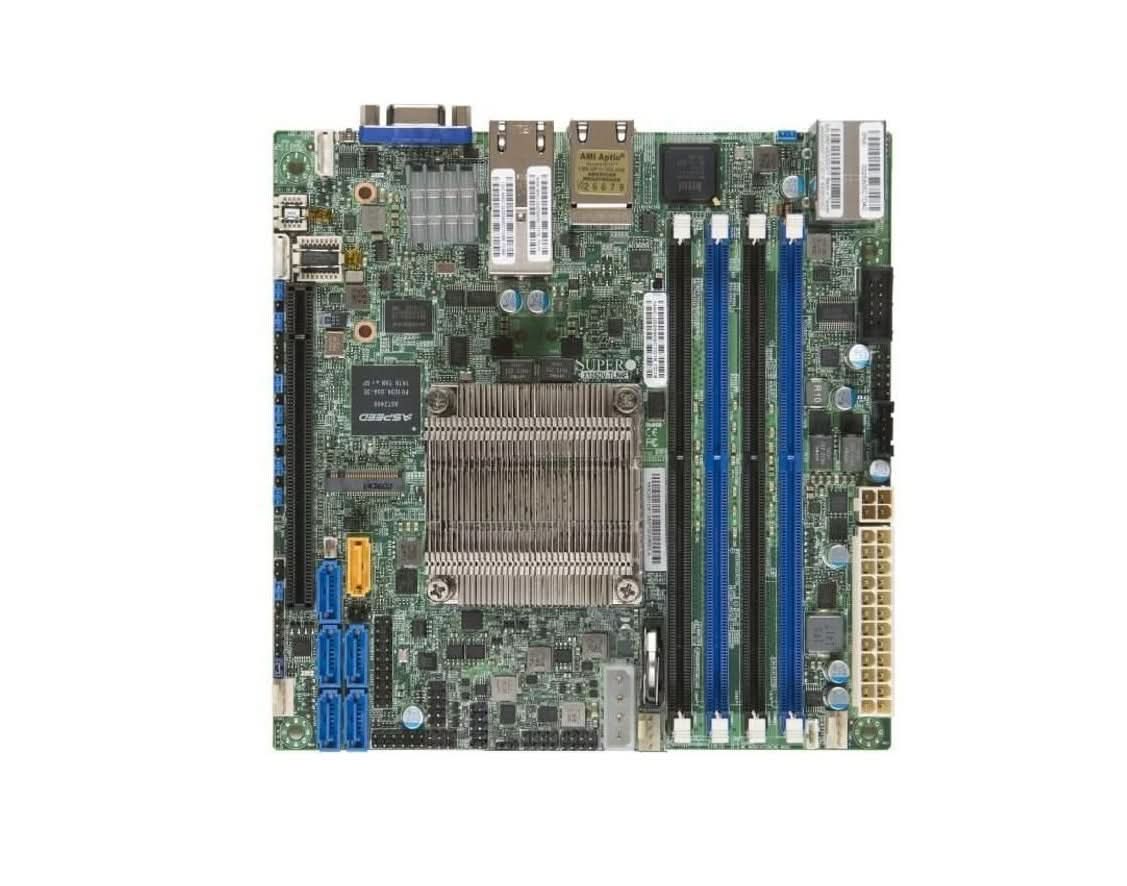

The Supermicro MBD-X10SDV-16C-TLN4F-O is a high-density Mini-ITX motherboard featuring an integrated Intel Xeon D-1587 16-core processor. The "-O" suffix indicates retail packaging, which includes the motherboard in an individual box with standard accessories.



Specifications

Model Number:  MBD-X10SDV-16C-TLN4F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-X10SDV-16C-TLN4F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X10SDV-16C-TLN4F-O

Processor Type:  Intel Xeon

Processor Model:  D-1587

Processor Speed:  1.7GHz (2.3GHz)

Processor Cache:  24MB

Processor Core:  16Cores/32 threads

Processor Socket:  FCBGA-1667

Storage Interfaces:  6 × SATA3 (6 Gbps) ports

Network:  2 × 1010 GbE, 2 × Gigabit Ethernet ports via Intel I350-AM2

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2400 BMC

Memory Capacity:  64GB

Memory Supported:   128GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 3.0 x16

Error Detection:  ECC

TDP:  65W

Form Factor:  Mini-ITX
