Overview

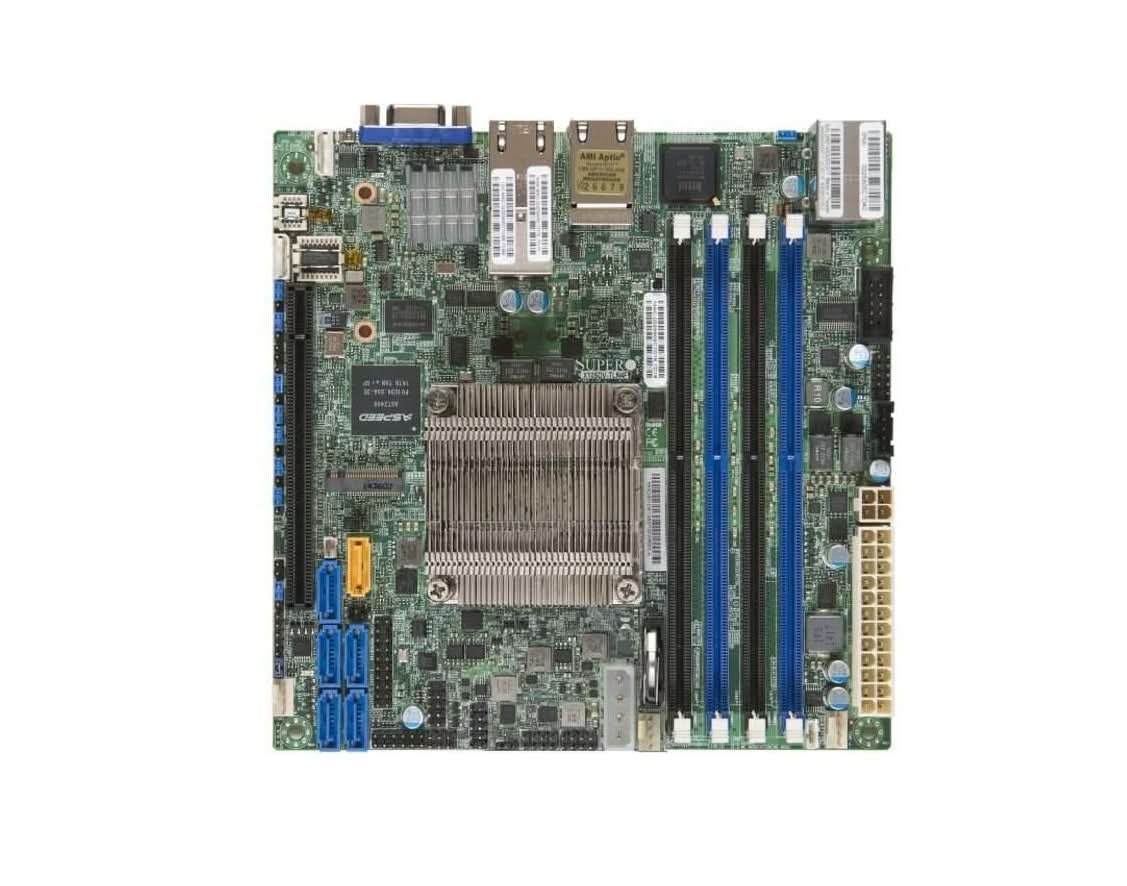

The Supermicro MBD-X10SDV-16C-TLN4F-B is a high-density Mini-ITX motherboard featuring an integrated Intel Xeon D-1587 processor. The "-B" suffix indicates bulk packaging, which typically includes the motherboard, an I/O shield, and basic cables but ships without a retail box.



Specifications

Model Number:  MBD-X10SDV-16C-TLN4F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-X10SDV-16C-TLN4F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-X10SDV-16C-TLN4F-B

Processor Type:  Intel Xeon

Processor Model:  D-1587

Processor Speed:  1.7GHz (2.3GHz)

Processor Core:  16Cores/32 threads

Processor Cache:  24MB

Processor Socket:  BGA-1667

Storage Interfaces:  6 × SATA3 (6 Gbps)

Network:  2 × 10 GbE port, 2×1 GbE via Intel I350-AM2, 1 × Gigabit RJ45

USB:  2 × USB 3.0, 4 × USB 2.0

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2400 BMC

Memory Ram:  64GB

Memory Supported:  128GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 3.0 x16

Error Detection:  ECC

TDP:  65W

Power Input:  12 V DC

Form Factor:  Mini-ITX
