Overview

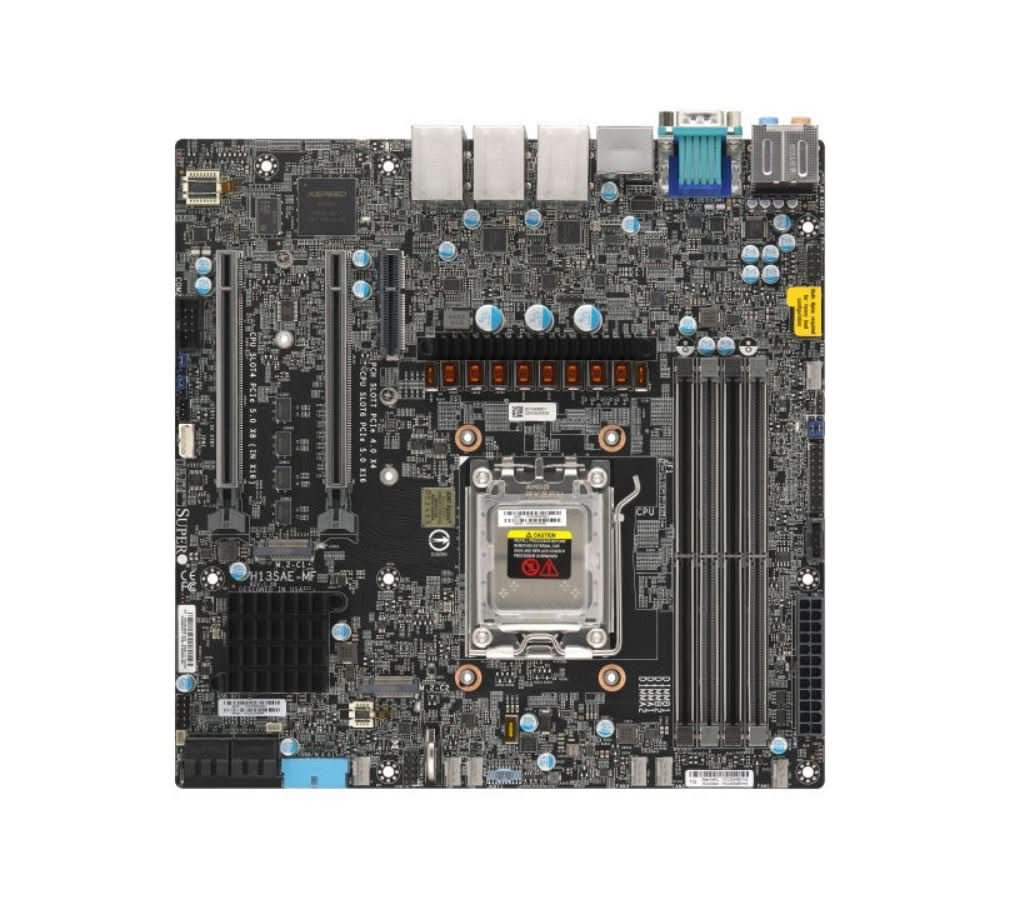

The Supermicro MBD-H13SAE-MF-B is a Micro-ATX motherboard for AMD LGA-1718 CPUs, including EPYC 4005/4004 and Ryzen 7000/9000/8700G series. It features PCIe 5.0 x16 for advanced connectivity and high-performance computing.



Specifications

Model Number:  MBD-H13SAE-MF-B

Brand:   Supermicro

Alt Part Number(s):    MBD-H13SAE-MF-B

Product Type:  Motherboard



Technical Description

Brand:  Supermicro

Model:  MBD-H13SAE-MF-B

Form Factor: Micro-ATX

Dimension: 9.6" x 9.6" (24.384cm x 24.384cm)

CPU: Single AMD EPYC 4004/4005 or Ryzen 7000/9000 Series

Core Count: Up to 16C/32T

Memory: 4 DIMM Slots; Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM

Error Detection: ECC memory (corrects single-bit, detects double-bit errors)

Chipset: B650

SATA: 4 SATA (6Gbps); RAID 0/1/10 support

Network Controller: Dual Intel i210 1GbE LAN; Dedicated IPMI LAN with ASPEED AST2600 BMC

USB: 2 USB 3.2 Gen1 (Header); 3 USB 3.2 Gen2 Type-A (Rear); 3 USB 3.2 Gen2 Type-C (Rear); 1 USB 2.0 (Header)

Video: 1 HDMI 2; 1 DisplayPort; 2 VGA Type-C (Rear)

Serial: 1 COM port (Header)

Audio: ALC 888S HD Audio

TPM: TPM 2.0 Header

PCIe Slots: 1 PCIe 4.0 x4; 2 PCIe 5.0 x16

M.2 Slots: 2 M.2 PCIe 5.0 x4 (M-key 2280/22110)

BIOS: AMI 32MB SPI Flash; ACPI 6.4; SMBIOS 3.5+; UEFI 2.8

Voltage Monitoring: +12V, +3.3V, +5V, CPU and system temperature, thermal trip support

Fans: 7x 4-pin fan headers (up to 7 fans)
