Overview

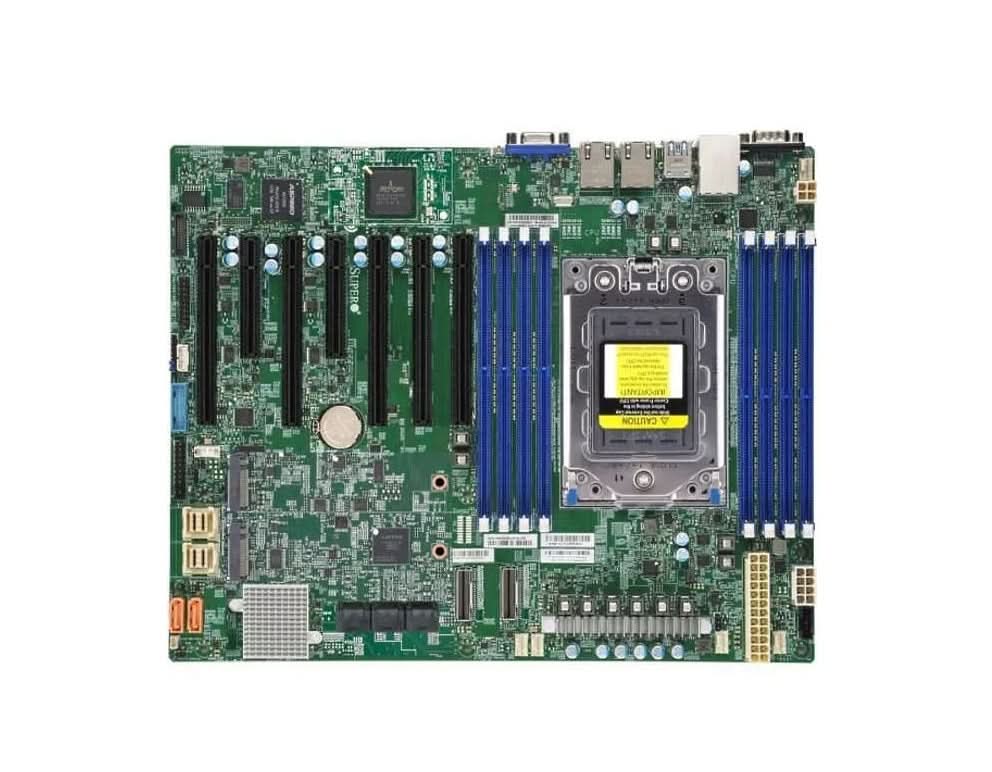

The Supermicro MBD-H12SSL-NT-O is a high-performance ATX server motherboard designed for single-socket AMD EPYC processors. The "-O" suffix indicates the Retail Pack version, which includes a standard I/O shield and six SATA cables.



Specifications

Model Number:  MBD-H12SSL-NT-O

Brand:  Supermicro

Alt Part Number(s):  MBD-H12SSL-NT-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-H12SSL-NT-O

Series:  7002 / 7003

Processor Type:  AMD EPYC

Processor Core:  64-Cores

Processor Socket:  (SP3) LGA 4094

Storage Interfaces:  8 SATA3 6Gbps ports

USB:  Up to 6 × USB 3.0 (4 rear + 2 via header)

Network:  Dual 10GBase-T (10GbE) LAN ports via a Broadcom BCM57416 controller

Graphics:  ASPEED AST2500 BMC

Memory Supported:   2TB

Memory Type:  DDR4

Memory Channel:  8-Channel

Memory Slots:  8 DIMM slots

Expansion Slots:  Total of 7 PCIe 4.0 slots

Fan Headers:  7 × PWM 4-pin with tachometer monitoring

Error Detection:  ECC

Form Factor:  ATX
