Overview

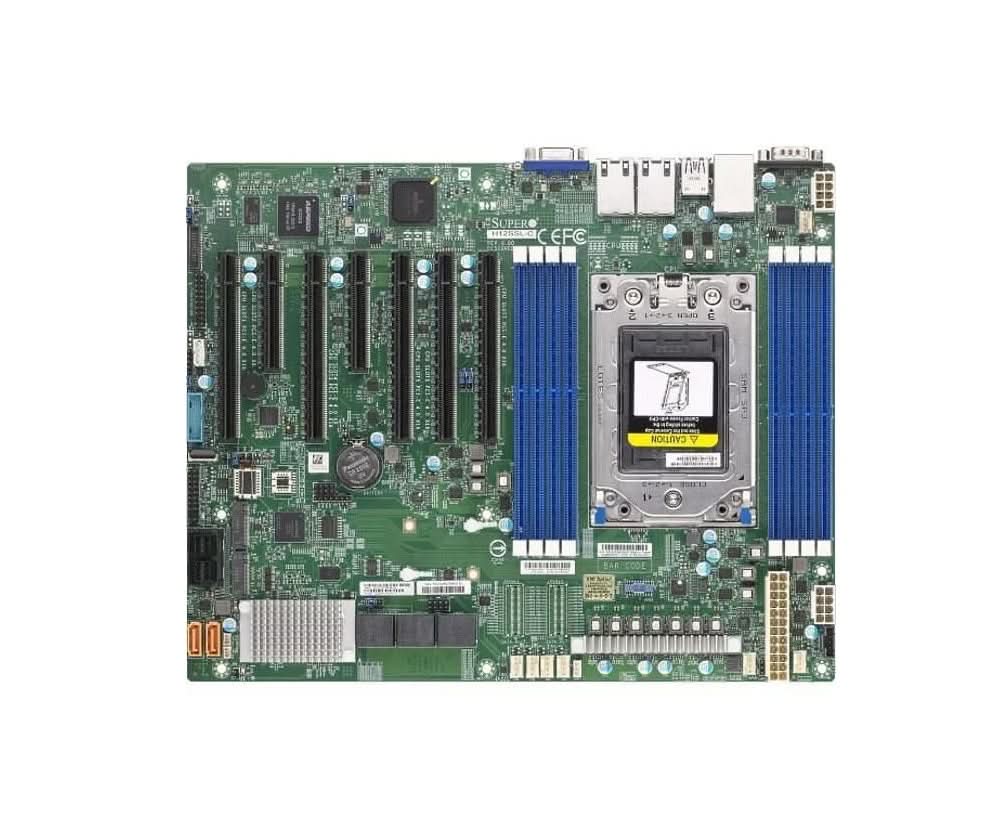

The Supermicro MBD-H12SSL-C-B is an ATX server motherboard designed for single-socket AMD EPYC 7002 and 7003 series processors. It is nearly identical to the CT variant but features dual Gigabit Ethernet (1GbE) ports instead of 10GbE, while still including an integrated SAS3 controller for high-performance storage.



Specifications

Model Number:  MBD-H12SSL-C-B

Brand:  Supermicro

Alt Part Number(s):  MBD-H12SSL-C-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:

Series:  7003/7002

Processor Type:  AMD EPYC

Processor Core:  64-Core

Storage Interfaces:  8 × SATA3 (6 Gb/s)

Network: Dual Gigabit Ethernet LAN ports (10/100/1000 Mbps) via Broadcom BCM5720

USB:  4 × USB 3.0 ports, 2 × USB 3.0 via

RAID:  RAID 0, 1, and 10

Graphics:  ASPEED AST2500 BMC

Memory Capacity:  256GB

Memory Supported:

Memory Speed:  3200MHz

Memory Channel:  8-Channel

Memory Type:  DDR4

Memory Slots:  8 DIMM slots

Expansion Slots:  5 PCI-E 4.0 x16 slots and 2 PCI-E 4.0 x8

Error Detection:  ECC

Form Factor:  ATX
