Overview

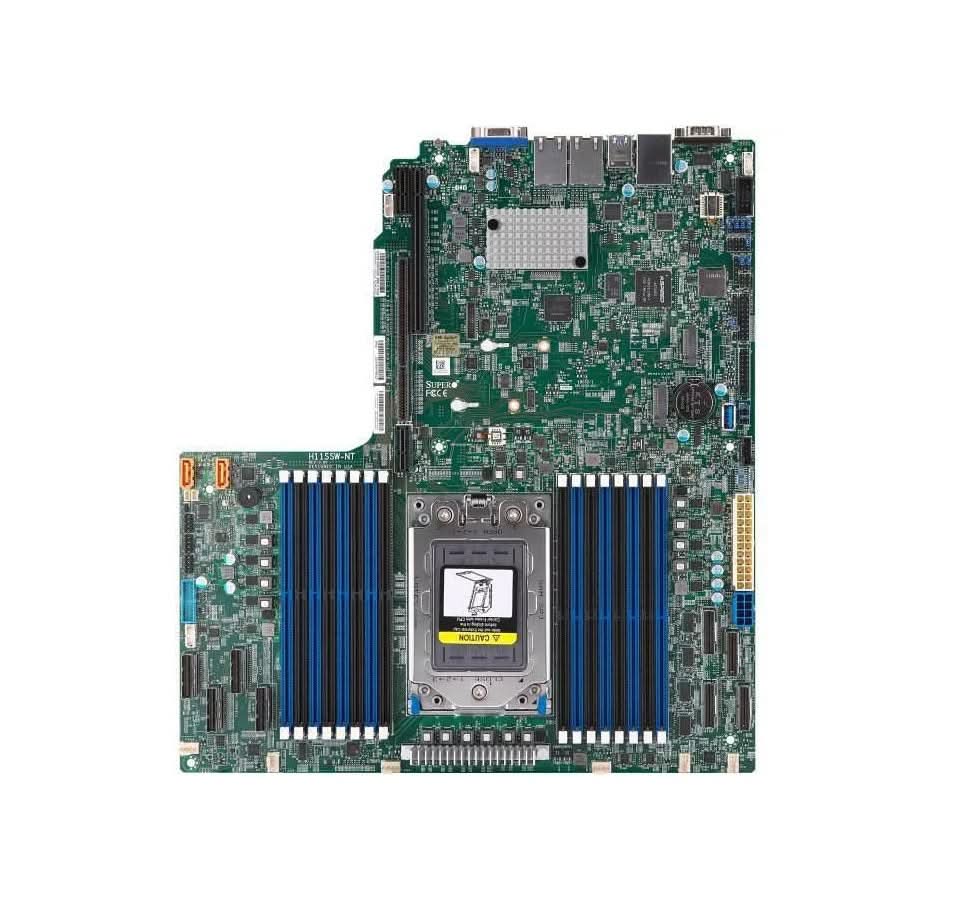

The Supermicro MBD-H11SSW-NT-O is a high-performance Proprietary WIO (Wide I/O) server motherboard designed for the AMD EPYC 7001/7002 series processors. The "-O" suffix denotes the Retail Pack version, which typically includes full documentation and essential retail accessories.



Specifications

Model Number:  MBD-H11SSW-NT-O

Brand:  Supermicro

Alt Part Number(s):  MBD-H11SSW-NT-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-H11SSW-NT-O

Series:  7001/7002

Processor Type:  AMD EPYC

Processor Core:  32-Cores/64-Cores

Processor Socket:  SP3

Chipset Type:  Intel SoC

Storage Interfaces:  16 SATA3 (6 Gbps) ports or 4 NVMe ports via SlimSAS connectors

Network:  Two 10 GbE ports + one IPMI LAN

USB:  Multiple USB 3.0 ports

Graphics:  ASPEED AST2500 BMC

Memory Supported:   2TB DDR4-2666 4TB (DDR4-3200)

Memory Channel:  8-channel

Memory Type:  DDR4

Memory Slots:  16 DIMM slots

Expansion Slots:  1 × PCIe 3.0 ×32, 1 × PCIe 3.0 ×16

Error Detection:  ECC

Power Capacity:  270W

Form Factor:  Proprietary WIO

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
