Overview

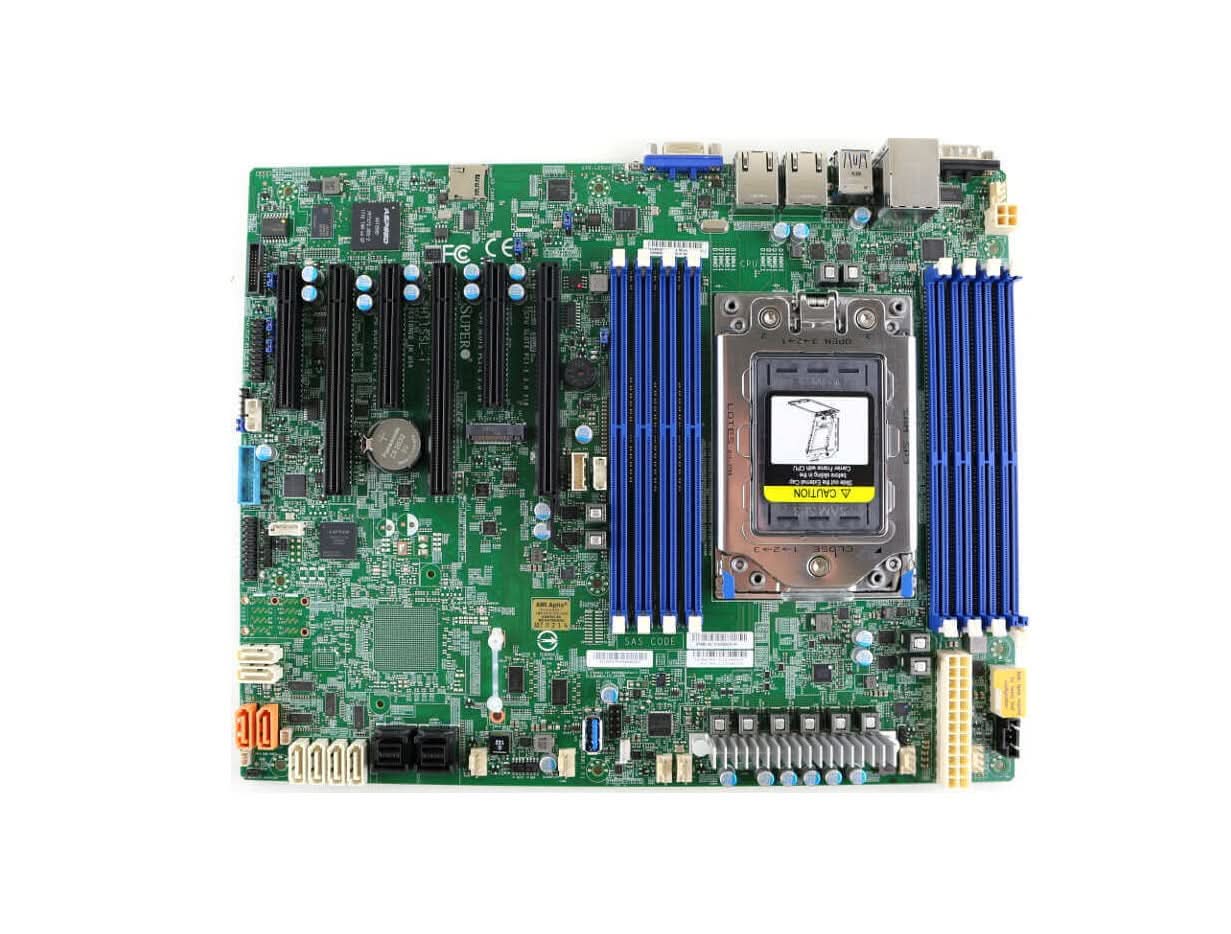

The Supermicro MBD-H11SSW-iN-O is a high-performance Proprietary WIO server motherboard designed for single AMD EPYC 7001/7002 series processors. The "-O" suffix designates the retail packaging version of the H11SSW-iN.



Specifications

Model Number:  MBD-H11SSW-IN-O

Brand:  Supermicro

Alt Part Number(s):  MBD-H11SSW-IN-O

Product Type:  Motherboard



Technical Description

Brand:  Supermicro

Model Number:  MBD-H11SSW-IN-O

Series:  7001/7002

Processor Type:  AMD EPYC

Processor Socket:  Single SP3 (LGA 4094)

Processor Core:  64-Core

Integrated Graphics:  ASPEED AST2500 BMC

Storage Interfaces:  16x SATA3 or 4x NVMe

Networking:  Dual 1GbE LAN ports (Broadcom BCM5720L) + 1 dedicated IPMI

Memory Capacity Standard Revision (1.x):  2TB, DDR4-2666MHz

Revision 2.x:  4TB, DDR4-3200MHz

Number of Channels:  8-channel

Number of Memory Slots:  16 ×  DIMM

Expansion Slots:  1x PCIe 3.0 x32, 1x PCIe 3.0 x16

Power Supply:  45W

Form Factor:  Proprietary WIO

Height:  1.2"

Width:  4.94"

Depth:  23.2"
