Overview

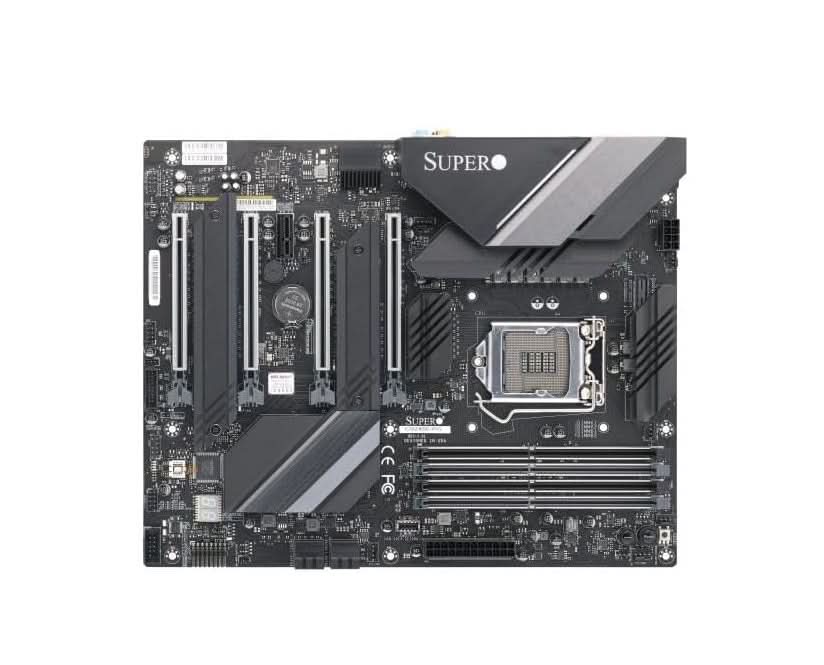

The MBD-C9Z490-PGW-O is a high-end ATX desktop/workstation motherboard built around the Intel Z490 chipset with features like 10th-Gen Intel CPU support, quad PCIe ×16 slots, dual LAN including 10 GbE, and dual M.2 NVMe slots — making it well-suited for performance-oriented PC builds that need robust networking and expansion.



Specifications

Model Number:  MBD-C9Z490-PGW-O

Brand:  Supermicro

Alt Part Number(s):  MBD-C9Z490-PGW-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-C9Z490-PGW-O

Processor Type:  Intel Core i9 / i7 / i5 / i3,Pentium, Celeron

Processor Socket:  LGA-1200 (Socket H5)

Processor Generation:  10th Gen

Chipset Type:  Intel Z490

Storage Interfaces:  4 × SATA III (6 Gb/s) ports (Z490 native)

Network:  10GbE LAN Single LAN port with AQC107 10G Ethernet Controller

USB Ports: USB 3.2 Gen 2x2 (20Gbps) Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports

Wireless:  Integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.1

Graphics:  ASPEED AST2600 BMC

Audio:  7.1 HD Audio with Realtek ALC1220 codec

Memory Supported:  128GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  4 PCI-E 3.0 x16 slots

Error Detection:  ECC

TDP Support:  Up to 14W

Form Factor:  ATX
