Overview

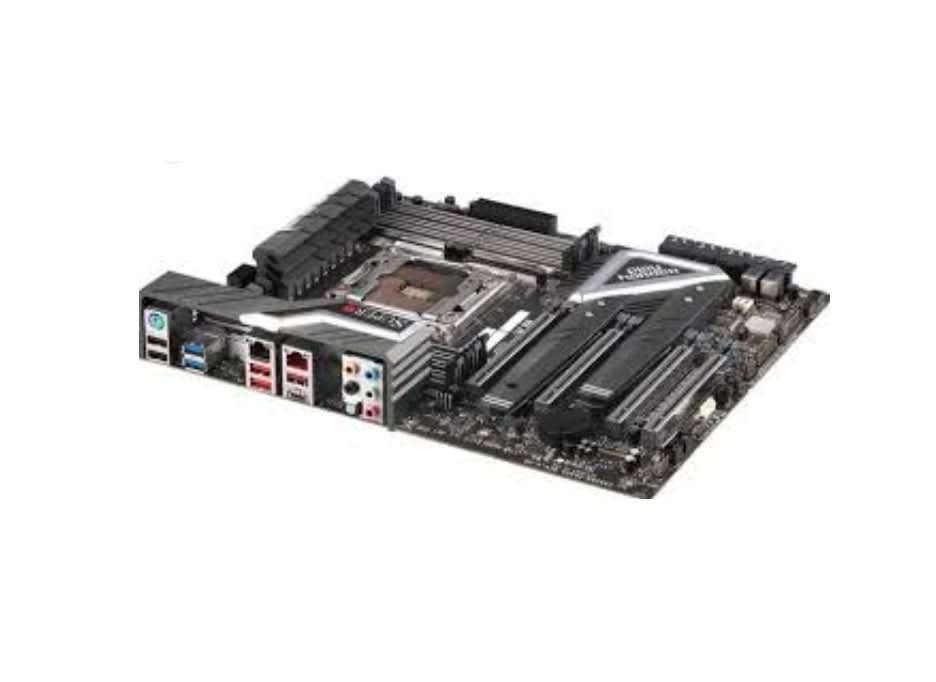

The Supermicro MBD-C9X299-PG300F-O is a high-performance ATX motherboard from Supermicro's "Professional Gaming" line, featuring the Intel X299 chipset for Core X-Series processors. The "-O" suffix indicates a Retail Pack that includes a standard boxed set with an I/O shield and cables.



Specifications

Model Number:  MBD-C9X299-PG300F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-C9X299-PG300F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-C9X299-PG300F-O

Processor Type:  Intel

Processor Socket:  LGA-2066 (Socket R4)

Chipset Type:  Intel X299 PCH

Storage Interfaces:  6 × SATA3 (6 Gb/s) ports

Network:  Dual LAN (1 Gb + 10 Gb)

USB:  USB 2.0, USB 3.2 Gen1,USB 3.2 Gen2

RAID:  RAID 0, 1, 5, and 10

Audio:  Realtek ALC1220 HD Audio

Memory Supported:   256GB

Memory Type:  DDR4

Memory Slots:  8 × UDIMM

Expansion Slots:  4 × PCIe 3.0 ×16 slots

Error Detection:  ECC

Fan Headers:  Up to 6 × 4-pin PWM fan

TDP:  165W

Form Factor:  ATX

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
