Overview

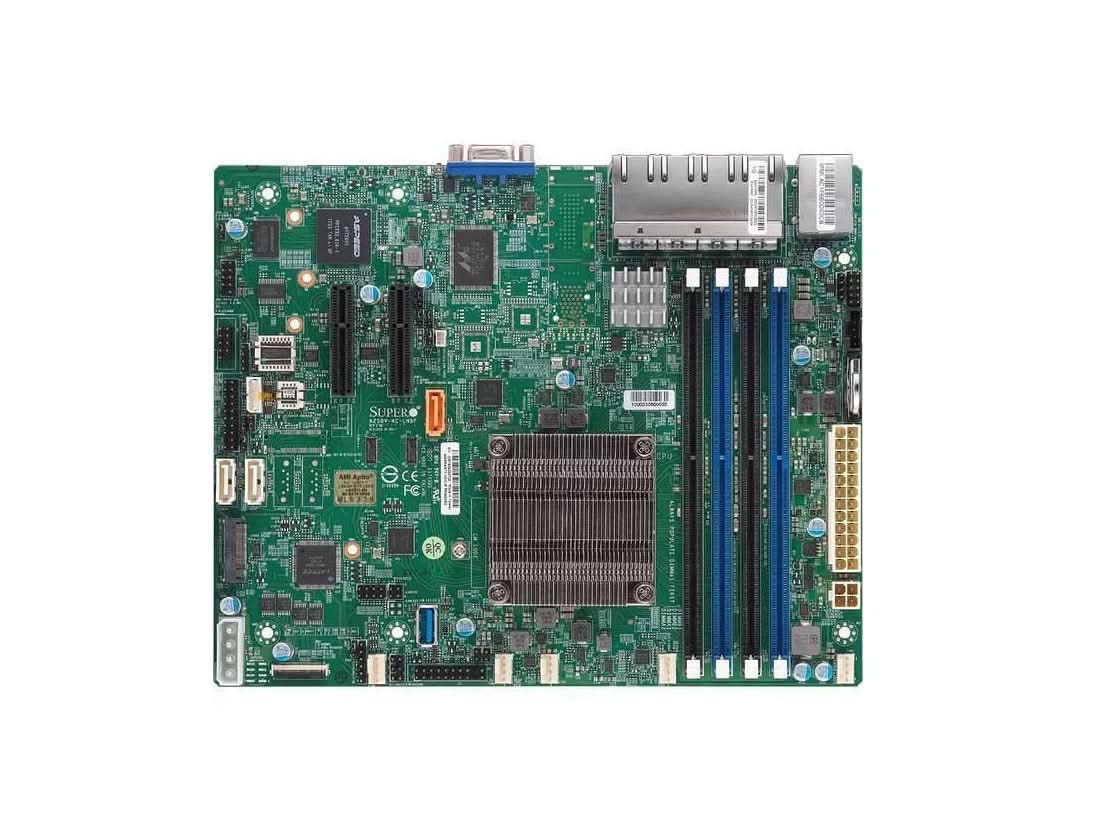

The Supermicro MBD-A2SDV-4C-LN8F-O is a retail-packaged Flex-ATX motherboard featuring an integrated 4-core Intel Atom C3000 series processor, specifically designed for efficient entry-level server and embedded applications.



Specifications

Model Number:  MBD-A2SDV-4C-LN8F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-A2SDV-4C-LN8F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-A2SDV-4C-LN8F-O

Processor Type:  Intel Atom

Processor Model:  C3558

Processor Core:  4Cores, 4 threads

Processor Cache:  8MB

Processor Socket:  BGA-1310

Storage Interfaces:  3 SATA3 (6Gbps) ports and 1 SuperDOM (Disk on Module) port

Network:  8 (1GbE) RJ45 ports via the Intel C3000 SoC and Intel I350-AM4 controller

USB Ports: 3 USB 3.0 ports and 2 USB 2.0 ports via internal headers

Graphics:  ASPEED AST2400 BMC

Memory Capacity:  64GB

Memory Supported:  256GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 PCIe 3.0 x2 slot

Error Detection:  ECC

TDP:  16W

Power Input:  12 V DC

Form Factor:  Flex-ATX
