Overview

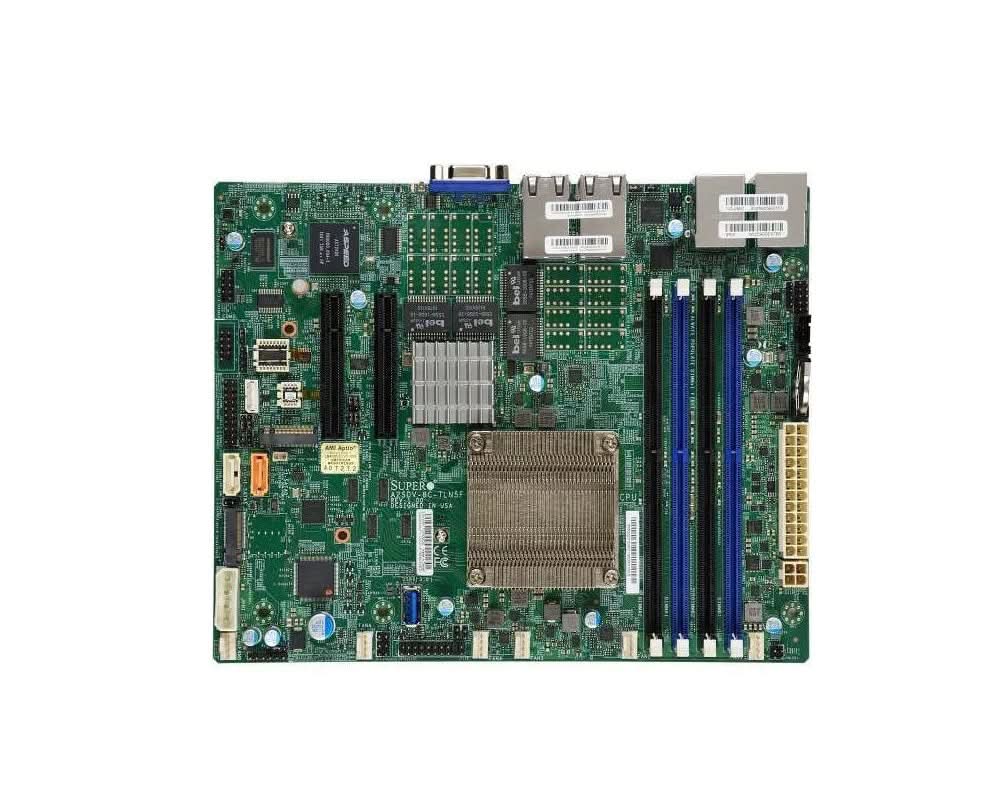

The MBD-A2SDV-16C-TLN5F-B is a Flex ATX embedded/server motherboard built around the Intel® Atom® C3958 16-core SoC, offering massive memory support (up to 256 GB ECC), quad 10 GbE + 1 GbE networking, dual M.2 & SATA storage, PCIe expansion, rich I/O (USB, VGA, COM), and IPMI/BMC remote management — ideal for compact servers, network appliances, storage platforms, virtualization hosts, and embedded enterprise deployments where high-throughput networking and low power are priorities.



Specifications

Model Number:  MBD-A2SDV-16C-TLN5F-B

Brand:  Supermicro

Alt Part Number(s):  MBD-A2SDV-16C-TLN5F-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-A2SDV-16C-TLN5F-B

Processor Type:  Intel Atom

Processor Model:  C3958

Processor Core:  16 cores/16 threads

Processor Socket:  FCBGA-1310

Storage Interfaces:  2 SATA3 (6Gbps) ports controlled by the SoC

Network:  4 x 10GbE LAN ports via Intel X557,1 x 1GbE LAN port

USB:  1 VGA port, 5 USB 3.0 ports (4 rear, 1 Type-A), and 2 USB 2.0 ports

Graphics:  ASPEED AST2400 BMC

Memory Capacity:  64GB

Memory Supported:  256GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 x PCIe 3.0 x8 slot

Error Detection:  ECC

TDP:  31W

Power Input:  12V DC

Form Factor:  Flex-ATX
