Overview

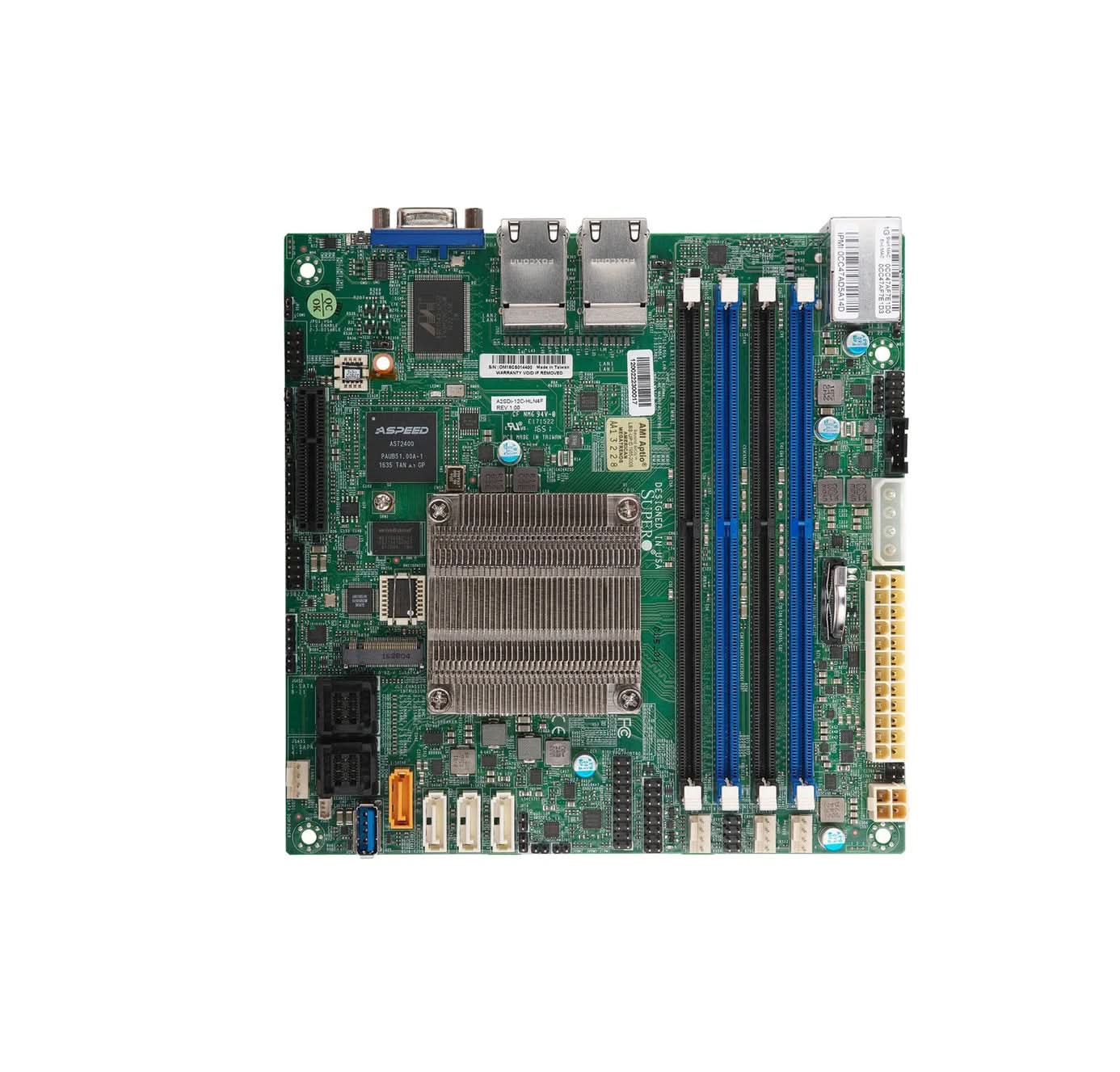

The Supermicro MBD-A2SDI-8C-HLN4F-O is a high-density, low-power Mini-ITX motherboard featuring an integrated 8-core Intel Atom C3758 processor. Part of the Denverton SoC family, it is designed for networking appliances, storage servers, and embedded applications that require high reliability and high storage I/O.



Specifications

Model Number:  MBD-A2SDI-8C-HLN4F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-A2SDI-8C-HLN4F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-A2SDI-8C-HLN4F-O

Processor Type:  Intel Atom

Processor Model:  C3758

Processor Core:   8-Cores/8 threads

Processor Speed:  2.20GHz

Processor Cache:  16MB

Processor Socket:  FCBGA-1310

Processor Generation:  3rd Gen

Storage Interfaces:  12 × SATA3 + M.2 PCIe/SATA

Network:  Quad-port Gigabit Ethernet (1GbE) LAN via the Intel C3000 SoC

USB:  1 × USB 3.x, 4 × USB 2.0

RAID:  RAID 0, 1, 5, and 10

Graphics:  ASPEED AST2400 BMC

Memory Capacity:  64GB

Memory Supported:  256GB

Memory Type:  DDR4

Memory Slots:  4 DIMM slots

Expansion Slots:  1 × PCIe 3.0 ×4

Error Detection:  ECC

TDP:  25W

Power Input:  12V DC

Form Factor:  Mini-ITX
