Overview

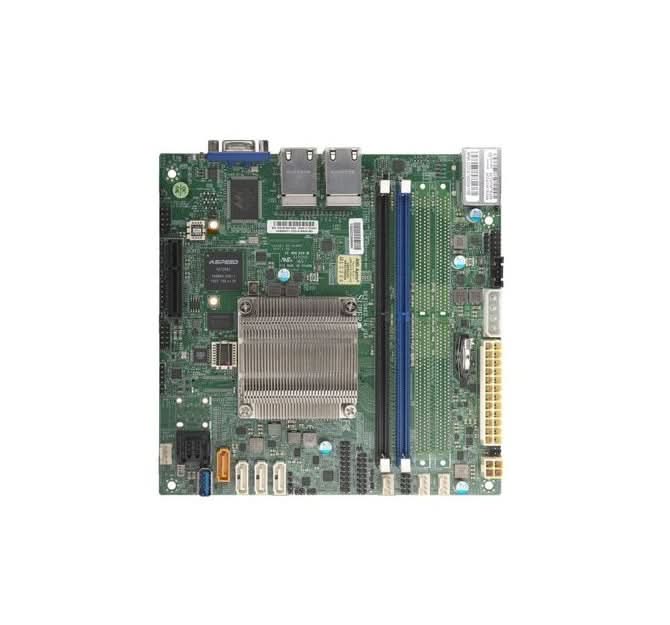

The Supermicro MBD-A2SDI-2C-HLN4F-O is a low-power Mini-ITX motherboard with an integrated 2-core Intel Atom C3338 processor. Part of the Denverton family, this board is designed for lightweight embedded applications, networking appliances, and entry-level cold storage that prioritise high efficiency and high SATA density over raw compute power.



Specifications

Model Number:  MBD-A2SDI-2C-HLN4F-O

Brand:  Supermicro

Alt Part Number(s):  MBD-A2SDI-2C-HLN4F-O

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-A2SDI-2C-HLN4F-O

Processor Type:  Intel Atom

Processor Model:  C3338

Processor Speed:  1.5GHz (burst up to 2.2GHz)

Processor Core:  2Core/2 threads

Processor Cache:  4MB

Storage Interfaces:  Up to 8 × SATA3

Network:  4 × 1 GbE

USB:  USB 3.0 Type-A port

Graphics:  ASPEED AST2400 BMC

Memory Capacity:  32GB

Memory Supported:  128GB

Memory Type:  DDR4

Memory Slots:  2 DIMM slots

Expansion Slots:  1 × PCIe 3.0 ×4

Error Detection:  ECC

TDP:  9W

Power Input:  12V DC

Form Factor:   Mini-ITX
