Overview

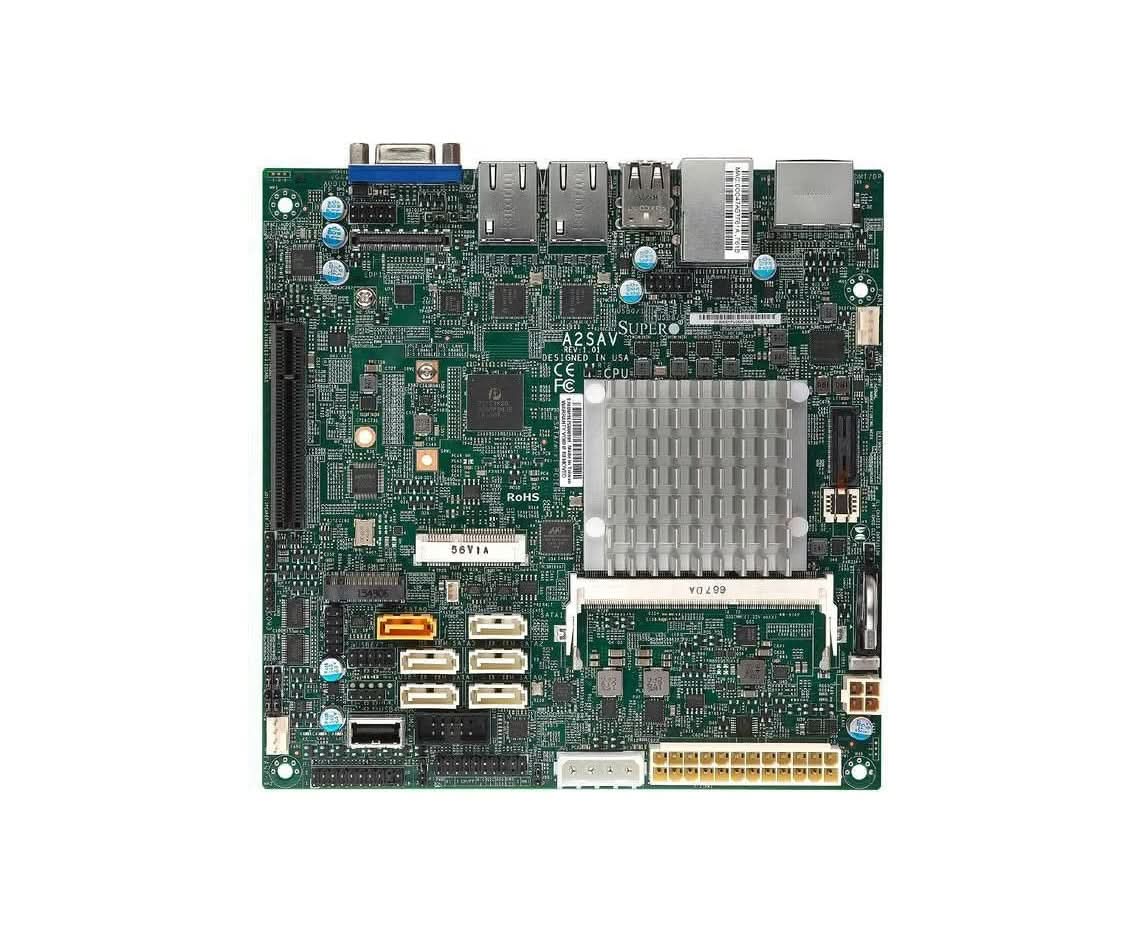

The MBD-A2SAV-B is a Mini-ITX embedded motherboard with an integrated Intel Atom E3940 SoC, supporting up to 8 GB DDR3L, dual Gigabit networking, multiple display outputs, and flexible storage through SATA/M.2 — ideal for compact server and embedded applications.



Specifications

Model Number:  MBD-A2SAV-B

Brand:  Supermicro

Alt Part Number(s):  MBD-A2SAV-B

Product Type:  Motherboard

Technical Description

Brand:  Supermicro

Model Number:  MBD-A2SAV-B

Processor Type:  Intel Atom

Processor Model:  E3940

Processor Core:  4-Cores

Processor Socket:  BGA-1296

Storage Interfaces:  6 SATA3 (6Gbps) ports

Network:  2 × RJ45 GbE via Intel I210-AT controllers

Video Output:  1 HDMI, 1 DisplayPort (DP), and 1 VGA port

USB Ports:  Total of 10 ports, including 2 USB 3.0 (rear) and 8 USB 2.0

RAID:  RAID 0, 1, 10

Graphics:  Intel HD Graphics

Memory Supported:   8GB

Memory Type:  DDR3L

Memory Slots:  1 × SO-DIMM

Expansion Slots:  1 × PCIe 2.0 ×2 (wired x8)

Fan Headers:  2 × 4-pin (PWM + monitoring)

Error Detection:  ECC

TDP:  9W

Power Input:  12 V DC

Form Factor:  Mini-ITX
