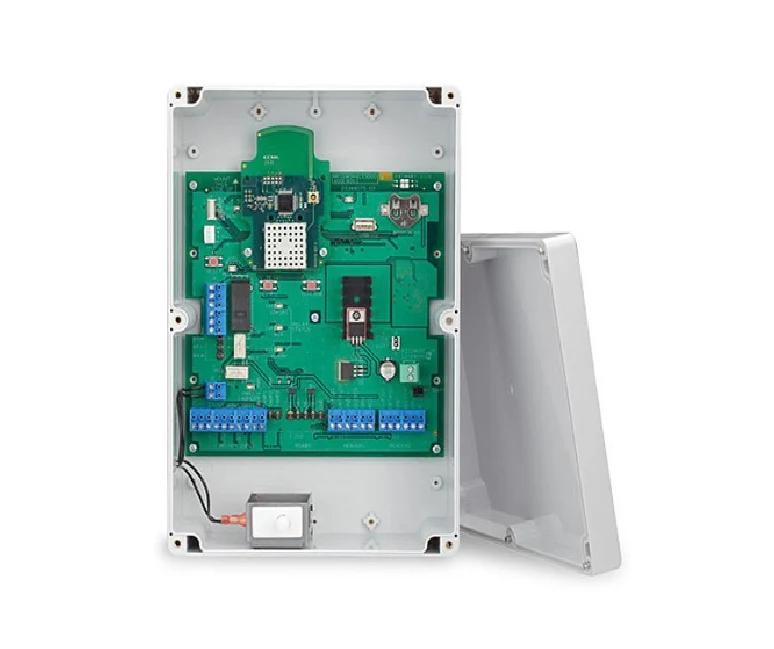

Schlage PIM400-1501-LC 16-Door AD-Series 400 mA Door Intelligent Controller
Overview
The Schlage PIM400-1501-LC is a 16-door intelligent panel interface module designed to manage wireless access control devices. It acts as a bridge between your central IP network and up to 16 Schlage AD-Series wireless devices.
Specifications
Model Number: PIM400-1501-LC
Brand: Schlage
Alt Part Number(s): PIM400-1501-LC
Product Type: Door Intelligent Controller
Technical Description
Model Number: PIM400-1501-LC
Max current: 400 mA
Frequency: 902–928 MHz
Door: 16-Door
Power Input: [POE] 12.95 W
Communication Range: 200~1000 FT - 4000 FT
Encryption: AES-128
Channels: 10 channels
Indoor (typical building): ≈200 ft / 61 m
Line-of-sight: ≈1000 ft / 305 m
Network interface: 10/100 Ethernet (RJ-45)
Host communication: IP network
Power over Ethernet: IEEE 802.3af
Alternative power: 12 V DC ±10%
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Overview
The Schlage PIM400-1501-LC is a 16-door intelligent panel interface module designed to manage wireless access control devices. It acts as a bridge between your central IP network and up to 16 Schlage AD-Series wireless devices.
Specifications
Model Number: PIM400-1501-LC
Brand: Schlage
Alt Part Number(s): PIM400-1501-LC
Product Type: Door Intelligent Controller
Technical Description
Model Number: PIM400-1501-LC
Max current: 400 mA
Frequency: 902–928 MHz
Door: 16-Door
Power Input: [POE] 12.95 W
Communication Range: 200~1000 FT - 4000 FT
Encryption: AES-128
Channels: 10 channels
Indoor (typical building): ≈200 ft / 61 m
Line-of-sight: ≈1000 ft / 305 m
Network interface: 10/100 Ethernet (RJ-45)
Host communication: IP network
Power over Ethernet: IEEE 802.3af
Alternative power: 12 V DC ±10%
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Original: $1,079.00
-70%$1,079.00
$323.70Description
Overview
The Schlage PIM400-1501-LC is a 16-door intelligent panel interface module designed to manage wireless access control devices. It acts as a bridge between your central IP network and up to 16 Schlage AD-Series wireless devices.
Specifications
Model Number: PIM400-1501-LC
Brand: Schlage
Alt Part Number(s): PIM400-1501-LC
Product Type: Door Intelligent Controller
Technical Description
Model Number: PIM400-1501-LC
Max current: 400 mA
Frequency: 902–928 MHz
Door: 16-Door
Power Input: [POE] 12.95 W
Communication Range: 200~1000 FT - 4000 FT
Encryption: AES-128
Channels: 10 channels
Indoor (typical building): ≈200 ft / 61 m
Line-of-sight: ≈1000 ft / 305 m
Network interface: 10/100 Ethernet (RJ-45)
Host communication: IP network
Power over Ethernet: IEEE 802.3af
Alternative power: 12 V DC ±10%
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
