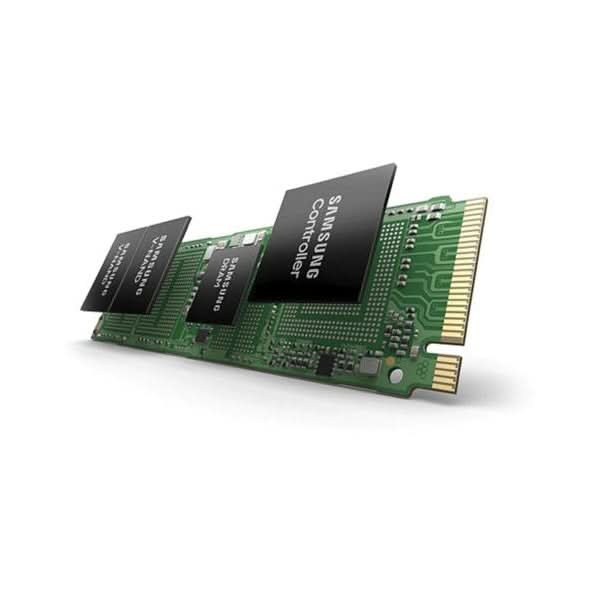

Samsung PM9E1 MZVLC2T0HBLD-00B07 2048GB M.2 PCI Express Gen.5 x4 Solid State Drive

Product Specification:

Manufacturer No: MZVLC2T0HBLD-00B07
Package: BULK
Unit: 300
List No: 00009
Spec Order: N
Is Domestic Only: N

Features:
PCIe Gen 5.0, 32 Gb/s interface, up to 4 lanes
PCI Express Base Specification Rev. 5.0
PCI Express M.2 Specification Rev. 5.0
NVMe Specification Rev. 2.0c
Power Saving Modes: APST (Autonomous Power State Transition) support, L1.2 low-power mode support
Supports Admin & NVM Command Sets
RoHS and Halogen-Free compliant
Hardware-based AES-XTS 256-bit encryption engine (SED)
TCG Opal 2.0 compliant (Self-Encrypting Drive)

Drive Configuration:
Capacity: 2048 GB (2 TB)
Form Factor: M.2 2280
Interface: PCIe Gen 5.0 x4 (NVMe)
Bytes per Sector: 512 bytes

Performance:
Sequential Read: Up to 14,000 MB/s
Sequential Write: Up to 12,500 MB/s
Random Read (4K, QD32): Up to 1,600,000 IOPS
Random Write (4K, QD32): Up to 2,600,000 IOPS

Reliability:
Uncorrectable Bit Error Rate: < 1 sector per 10¹⁵ bits read
MTBF (Mean Time Between Failures): 1.5 million hours

Environmental Specifications:
Operating Temperature: 0°C to 70°C
Non-operating Temperature: -40°C to 85°C
Non-operating Humidity (non-condensing): 5% to 95%
Non-operating Shock (0.5ms, 1/2 sine wave): 1500 G peak
Non-operating Vibration (20–2,000 Hz, sinusoidal): 20 G

Power:
Supply Voltage / Tolerance: 3.3V ± 5%
Active Power (Typical, RMS): Read: 8.92 W, Write: 8.21 W
Idle Power (Typical): 10 mW
Sleep Power (Typical): 5 mW

Boost your enterprise performance with the Samsung PM9E1 MZVLC2T0HBLD-00B07 2048GB M.2 PCI Express Gen.5 x4 Solid State Drive - ORDER TODAY!
