Overview

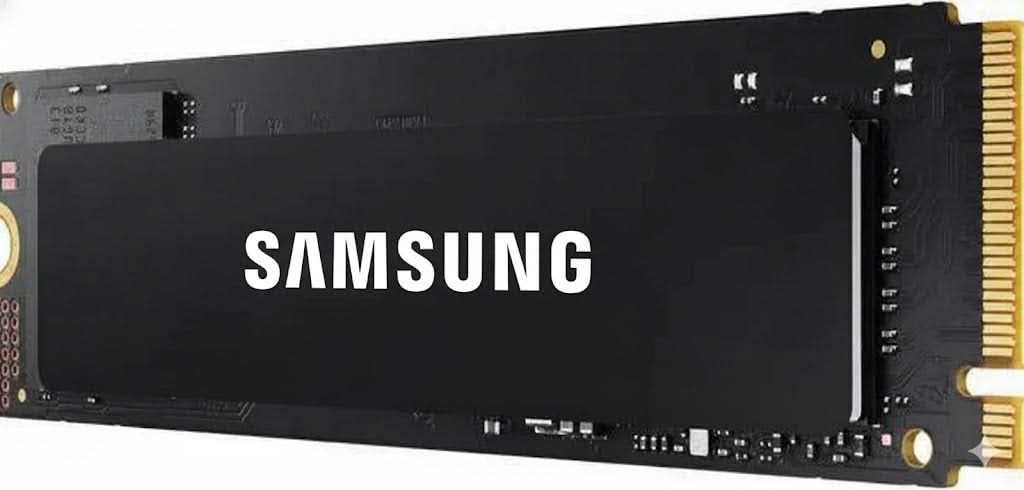

 Samsung MZVL8512HFLU-00B07 PM9C1b 512 GB PCI M.2 Express Gen.4 x4 512 Bytes SSD

Specifications

Model Number:  MZVL8512HFLU-00B07

Brand:   Samsung

Alt Part Number(s):    MZVL8512HFLU-00B07

Product Type:  Solid State Drive



Technical Description

Brand:  Samsung

Model:  MZVL8512HFLU-00B07

Capacity: 512GB

Form Factor: M.2

Interface: PCIe Gen4 x4

NVMe Compliance: NVM Express Specification Rev. 2.0 (Mandatory Only)

Bytes per Sector: 512 Bytes

Security: TCG OPAL (v2.01) Compliant for SED

RoHS Compliance: RoHS / Halogen Free

Sequential Read (128KB): Up to 7,000 MB/s

Sequential Write (128KB): Up to 6,600 MB/s

Random Read (4KB): Up to 800K IOPS

Random Write (4KB): Up to 1,300K IOPS

Active Read (Typ, 3.3V): 4.8 W

Active Write (Typ, 3.3V): 4.3 W

Idle (Typ.): 50 mW

Sleep (Typ.): 5 mW

Supply Voltage: 3.3V ± 5%

Voltage Ripple/Noise (Max.): 200mV p-p

UBER: < 1 sector per 10^15 bits read

MTBF: 1.5 million hours

Operating Temperature: 0°C to 70°C

Non-operating Temperature: -40°C to 85°C

Non-operating Humidity: 5% ~ 95% (non-condensing)

Non-operating Shock: 1,500 G (0.5ms, half sine)

Non-operating Vibration: 20 G (20Hz ~ 2,000Hz, sinusoidal)

PCIe Compliance:
 • PCIe Gen.4 16Gb/s Interface, up to 4 Lanes
 • PCI Express Base Specification Rev. 4.0
 • PCI Express M.2 Specification Rev. 4.0

Power Saving Features:
 • APST Support
 • L1.2 Mode Support
 • Admin NVM Command Set Support

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
