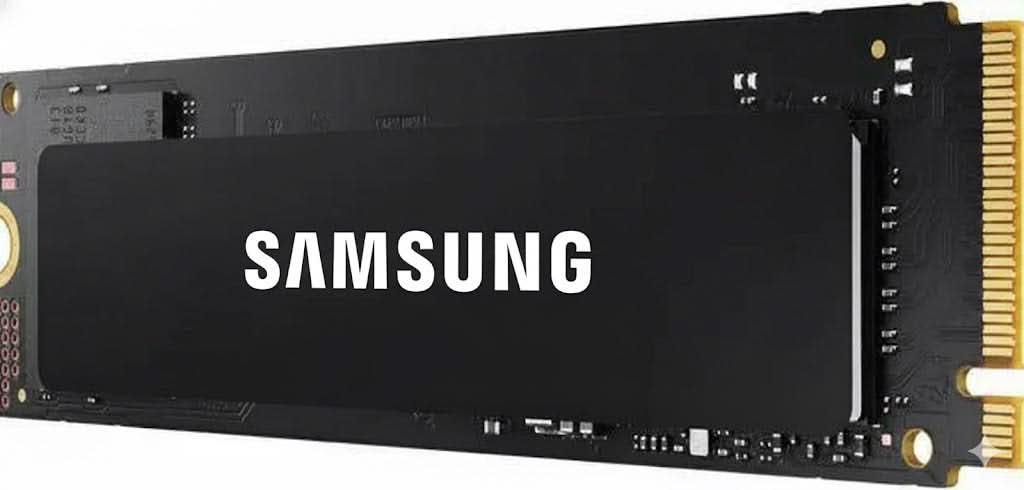

 Samsung PM9C1b MZVL8256HFJD-00B07 256GB PCI M.2 Express Gen.4 x4 512 Bytes SSD

Specifications

Model Number:  MZVL8256HFJD-00B07

Brand:   Samsung

Alt Part Number(s):    MZVL8256HFJD-00B07

Product Type:  Solid State Drive



Technical Description

Brand:  Samsung

Model:  MZVL8256HFJD-00B07

Capacity: 256GB

Form Factor: M.2

Interface: PCIe Gen4 x4

NVMe Compliance: NVM Express Specification Rev. 2.0 (Mandatory Only)

Bytes per Sector: 512 Bytes

Security: TCG OPAL (v2.01) Compliant for SED

RoHS Compliance: RoHS / Halogen Free

Sequential Read (128KB): Up to 6,200 MB/s

Sequential Write (128KB): Up to 3,800 MB/s

Random Read (4KB): Up to 500K IOPS

Random Write (4KB): Up to 800K IOPS

Active Read (Typ, 3.3V): 4.8 W

Active Write (Typ, 3.3V): 4.3 W

Idle (Typ.): 50 mW

Sleep (Typ.): 5 mW

Supply Voltage: 3.3V ± 5%

Voltage Ripple/Noise (Max.): 200mV p-p

UBER: < 1 sector per 10^15 bits read

MTBF: 1.5 million hours

Operating Temperature: 0°C to 70°C

Non-operating Temperature: -40°C to 85°C

Non-operating Humidity: 5% ~ 95% (non-condensing)

Non-operating Shock: 1,500 G (0.5ms, half sine)

Non-operating Vibration: 20 G (20Hz ~ 2,000Hz, sinusoidal)

PCIe Compliance:
 • PCIe Gen.4 16Gb/s Interface, up to 4 Lanes
 • PCI Express Base Specification Rev. 4.0
 • PCI Express M.2 Specification Rev. 4.0

Power Saving Features:
 • APST Support
 • L1.2 Mode Support
 • Admin & NVM Command Set Support
