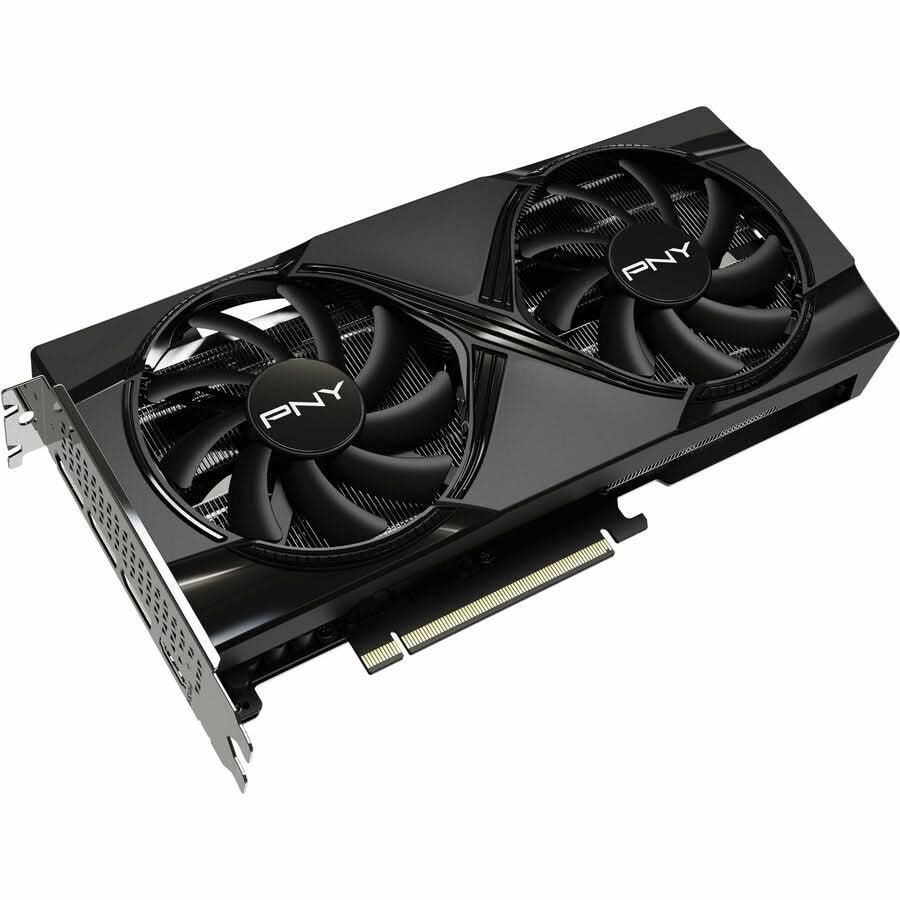

PNY VCG5060T16DFXPB1 GeForce RTX 5060 Ti 16GB GDDR7 Dual Fan Graphic Card

Get game-changing performance with the GeForce RTX™ 5060 Ti 16GB, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

DUAL FAN COOLING

With two fans working together, heat is distributed and dissipated efficiently across a compact design.

METAL BACKPLATE

Adds additional support to prevent the card from sagging and vents that enhance passive cooling

• NVIDIA DLSS 4

• NVIDIA Reflex 2

• GDDR7 Graphics Memory

• NVIDIA® App

• PCI Express® Gen 5

• NVIDIA Broadcast

Product Specification:

Host Interface: PCI Express 5.0 x8
Product Type: Graphic Card
Manufacturer Part Number: VCG5060T16DFXPB1
Manufacturer Website Address: http://www.pny.com
Platform Supported: PC,Linux
Limited Warranty: 3 Year
Standard Memory: 16 GB
Features: Dual-fan Cooler
Form Factor: Plug-in Card
Length: 9.6"
Manufacturer: PNY Technologies
Product Name: GeForce RTX 5060 Ti 16GB Dual Fan Graphic Card
Brand Name: PNY
Cooler Type: Passive Cooler
Memory Technology: GDDR7
Bus Width: 128 bit
Number Of Monitors Supported: 4
Chipset Manufacturer: NVIDIA
Chipset Model: RTX 5060 Ti
Card Height: Full-height
Power Supply Wattage: 600 W
Hdmi: Yes
Chipset Line: GeForce
Chipset Series: RTX
Displayport: Yes
Slot Space Required: Dual
Number Of Displayport Outputs: 3
Number Of Hdmi Outputs: 1
Maximum Digital Display Resolution: 7680 x 4320
Gpu Clock: 2.41 GHz
Gpu Boost Clock: 2.57 GHz
Cuda Cores: 4608
Power Connector: 1x 8-pin
Maximum Memory Bandwidth: 448 GB/s
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ai Powered: Yes
Feature1: NVIDIA DLSS 4
Feature2: NVIDIA Reflex 2
Feature3: GDDR7 Graphics Memory
Feature4: NVIDIA® App
Feature5: PCI Express® Gen 5
Feature6: NVIDIA Broadcast

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
