Overview

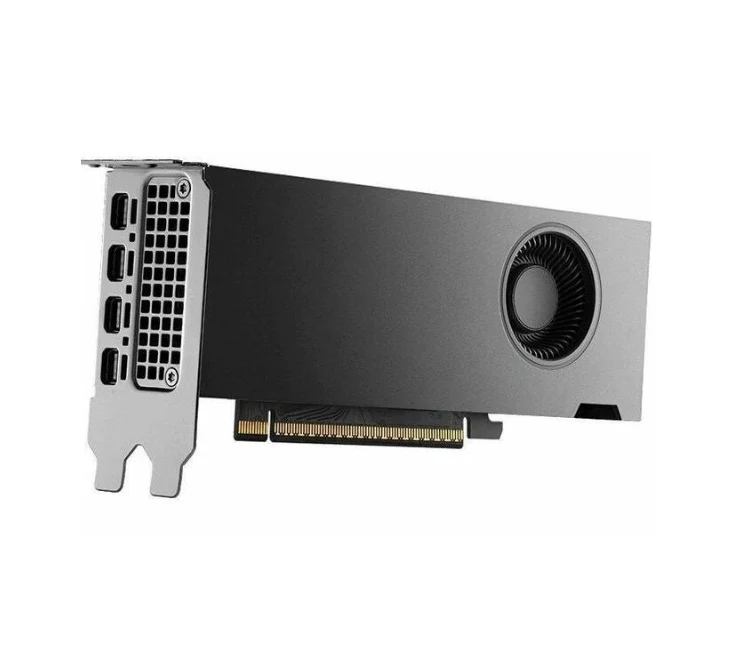

The PNY NVIDIA RTX PRO 4000 Blackwell SFF Edition (model VCNRTXPRO4000BLP-PB) is a professional low-profile graphics card designed for compact workstations. Built on the advanced NVIDIA Blackwell architecture, it succeeds the RTX 4000 SFF Ada by offering significantly more memory and processing power while maintaining a highly efficient 70W power envelope.



The Power of NVIDIA Blackwell in Compact Workstations

• Enhanced Streaming Multiprocessors (SMs) built for neural shaders

• 5th Gen Tensor Cores support FP4 precision, DLSS 4 Multi Frame Generation

• 4th Gen Ray Tracing Cores built for detailed geometry

• 24 GB of GDDR7 memory

• 432 GB/s of memory bandwidth

• 9th Gen NVENC and 6th Gen NVDEC with 4:2:2 support

• PCIe Gen 5

• Four Mini DisplayPort 2.1b connectors

• AI Management Processor

Product Specification:

Package Contents: NVIDIA RTX PRO 4000 Blackwell SFF Edition Graphic Card ATX (full-height) bracket attached and LP (low-profile) bracket in the box 4x mDP to DP NVIDIA Certified Latching Adapters
Host Interface: PCI Express 5.0 x8
Product Type: Graphic Card
Manufacturer Part Number: VCNRTXPRO4000BLP-PB
Manufacturer Website Address: http://www.pny.com
Platform Supported: PC,Linux,Solaris,FreeBSD OS
Limited Warranty: 3 Year
Standard Memory: 24 GB
API Supported: DirectX 12,OpenGL 4.6,Vulkan 1.4,OpenCL 3.0
Features: ECC,VR Ready,Ray Tracing,CUDA Technology
Form Factor: Plug-in Card
Length: 6.6"
Manufacturer: PNY Technologies
Product Name: NVIDIA RTX PRO 4000 Blackwell SFF Edition Graphic Card
Brand Name: PNY
Cooler Type: Active Cooler
Memory Technology: GDDR7
Bus Width: 192 bit
Number Of Monitors Supported: 4
Chipset Manufacturer: NVIDIA
Chipset Model: RTX PRO 4000
Card Height: Half-height/Low-profile
Chipset Series: RTX
Slot Space Required: Dual
Mini Displayport: Yes
Number Of Mini Displayport Outputs: 4
Maximum Digital Display Resolution: 7680 x 4320
Cuda Cores: 8960
Maximum Memory Bandwidth: 432 GB/s
Ai Powered: Yes
Feature1: Enhanced Streaming Multiprocessors (SMs) built for neural shaders
Feature2: 5th Gen Tensor Cores support FP4 precision, DLSS 4 Multi Frame Generation
Feature3: 4th Gen Ray Tracing Cores built for detailed geometry
Feature4: 24 GB of GDDR7 memory
Feature5: 432 GB/s of memory bandwidth
Feature6: 9th Gen NVENC and 6th Gen NVDEC with 4:2:2 support
Feature7: PCIe Gen 5
Feature8: Four Mini DisplayPort 2.1b connectors
Feature9: AI Management Processor

* Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
