Overview

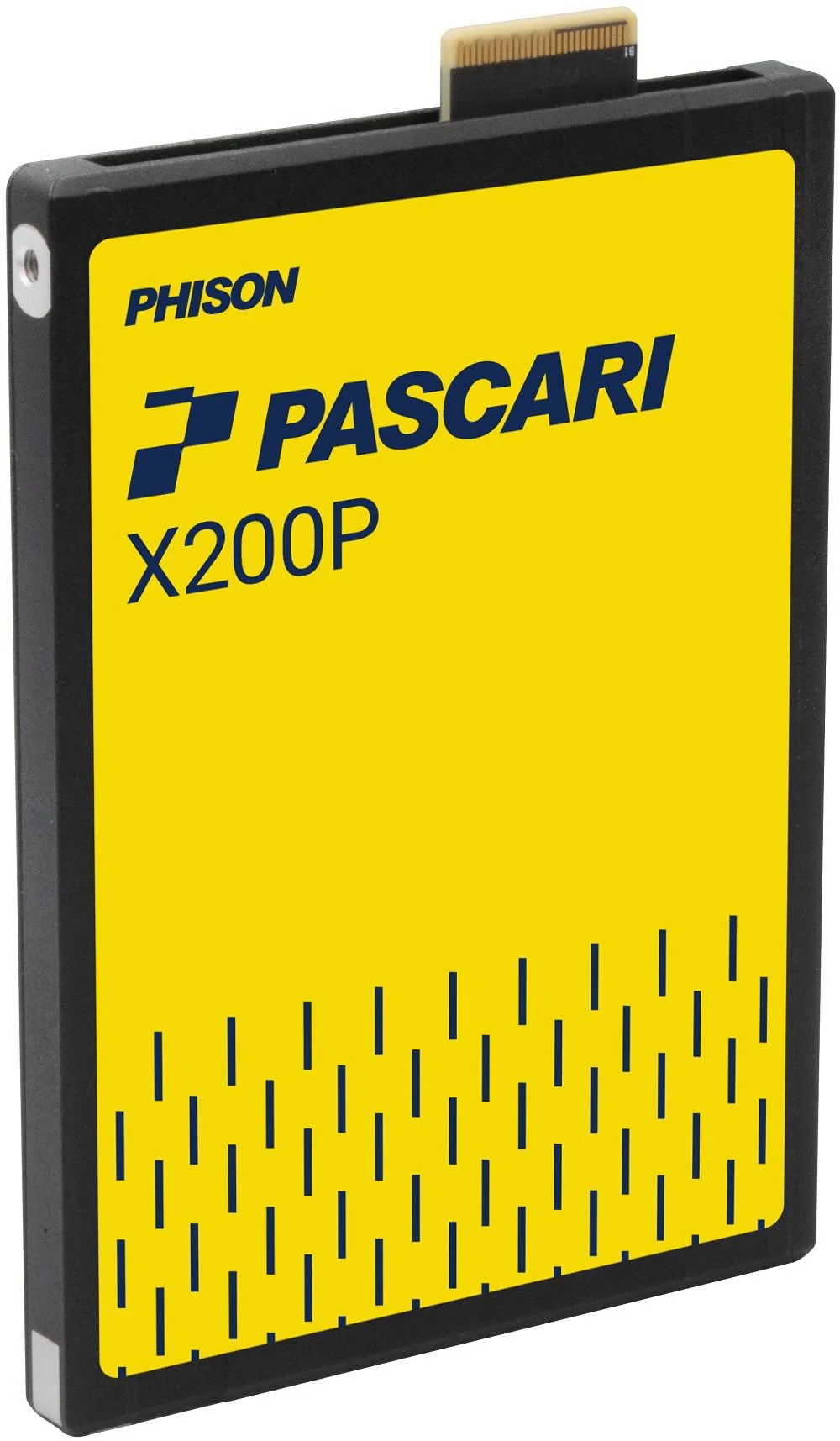

PHISON XX20DH037T68P218T1910 Pascari X200P 7.68TB E3.S PCIe 5.0 2x2 Dual Port SED SSD

Specifications

Model Number:  XX20DH037T68P218T1910

Brand:   PHISON

Alt Part Number(s):    XX20DH037T68P218T1910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX20DH037T68P218T1910

Capacity: 7.68 TB

Form Factor: E3.S

PCIe Interface
PCIe Gen5 x4
Dual port 2x2 lanes
PCIe AER (Advanced Error Reporting)

Compliance
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVM Express Management Interface Rev 1.2
SNIA SFF-TA-1009/1008

Performance
Sequential Read: up to 14,800 MB/s
Sequential Write: up to 8,700 MB/s
Random Read: up to 3,200K IOPS
Random Write: up to 460K IOPS

Power Consumption
128K Active Read (Avg. RMS): 17 W
128K Write (Avg. RMS): 22 W
4KB Active Read (Avg. RMS): 20 W
4KB Active Write (Avg. RMS): 25 W
4KB 70/30 Random READ/WRITE (Average RMS): 21 W
Idle Power: 5 W

Endurance / Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 14,016 TB

Environmental Specification
Temperature Range:
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock:
Operating: 500G, 2 ms
Non-operating: 1000G, 0.5 ms
Vibration:
Operating: 2.17 Grms (7 - 800 Hz)
Non-operating: 16.3 Grms (10 - 2000 Hz)
Drop: 80 cm, 6 surfaces
Bending: 50N, 60s

Certifications and Declarations:
CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Product Ecological Compliance:
RoHS compliant

Feature Support
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
