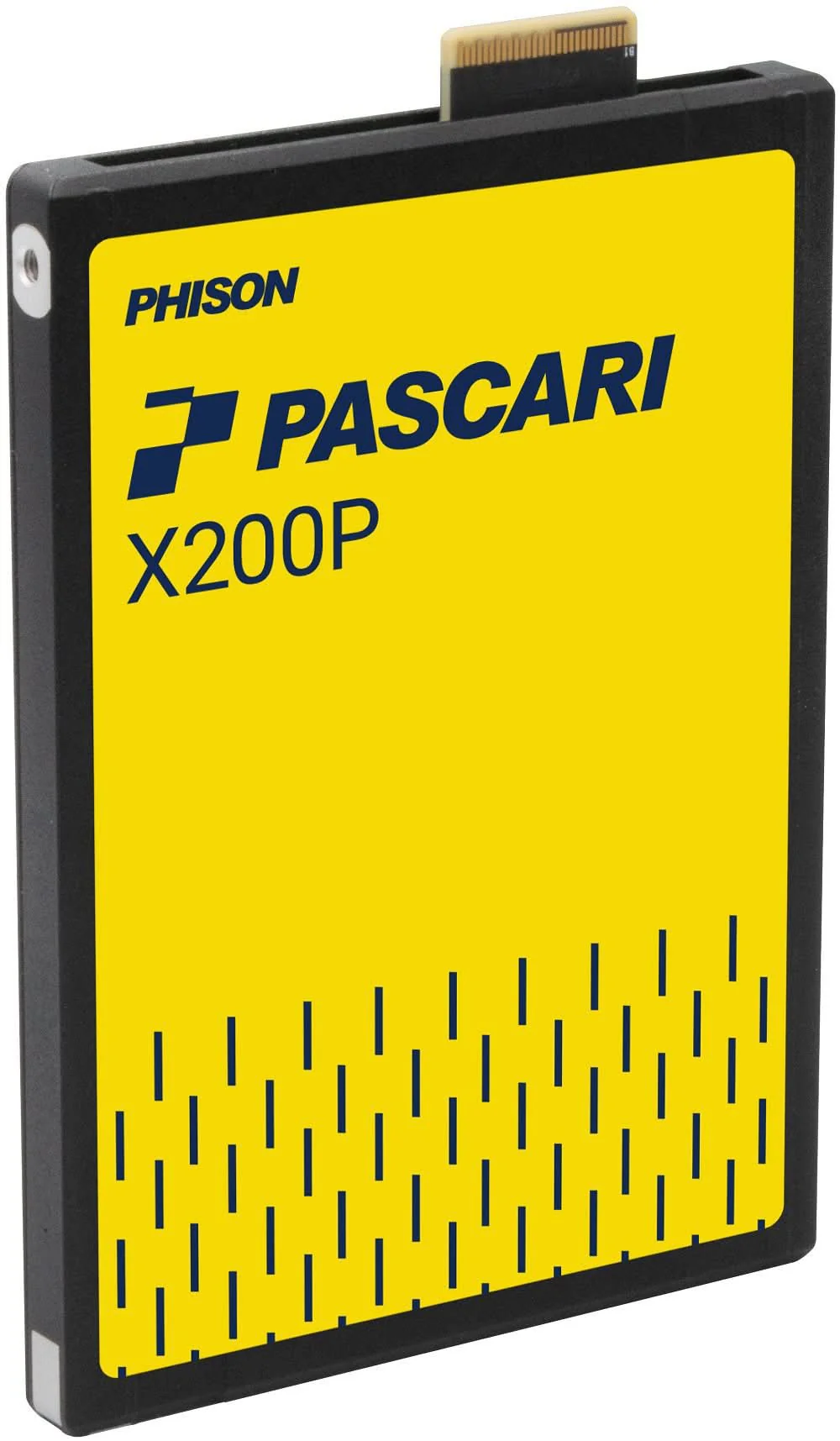

 PHISON XX20DH031T92P212T0410 Pascari X200P 1.92TB E3.S PCIe 5.0 2x2 Dual Port SED SSD

Specifications

Model Number:  XX20DH031T92P212T0410

Brand:   PHISON

Alt Part Number(s):    XX20DH031T92P212T0410

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX20DH031T92P212T0410

Capacity: 1.92 TB

Form Factor: E3.S

Interface: PCIe Gen5 x4 (Dual Port 2x2 lanes)
Advanced Error Reporting: PCIe AER

Compliance:
PCI Express Base Spec Rev. 5.0
NVMe Base Spec Rev. 2.0
NVMe-MI Rev. 1.2
SNIA SFF-TA-1009 / 1008

Sequential Read: up to 14,800 MB/s
Sequential Write: up to 4,300 MB/s
Random Read: up to 2,400K IOPS
Random Write: up to 140K IOPS

Active Power (128K Read, Avg. RMS): 17 W
Active Power (128K Write, Avg. RMS): 15 W
Active Power (4K Read, Avg. RMS): 15 W
Active Power (4K Write, Avg. RMS): 16 W
Active Power (4K 70/30 R/W, Avg. RMS): 14 W
Idle Power: 5 W

MTBF (million hours): 2.5
UBER: < 1 sector per 10¹⁸ bits read
DWPD: 1
TBW: 3,504 TB

Operating Temp. (°C): 0 – 70 (with airflow)
Non-Operating Temp. (°C): -40 – 85

Shock (Operating): 500 G, 2 ms
Shock (Non-Operating): 1000 G, 0.5 ms
Vibration (Operating): 2.17 Grms (7–800 Hz)
Vibration (Non-Operating): 16.3 Grms (10–2000 Hz)
Drop: 80 cm, 6 surfaces
Bending: 50 N, 60 s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Environmental Compliance: RoHS

Features:
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus Support
