PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 PCIE Dual Port ISE SSD

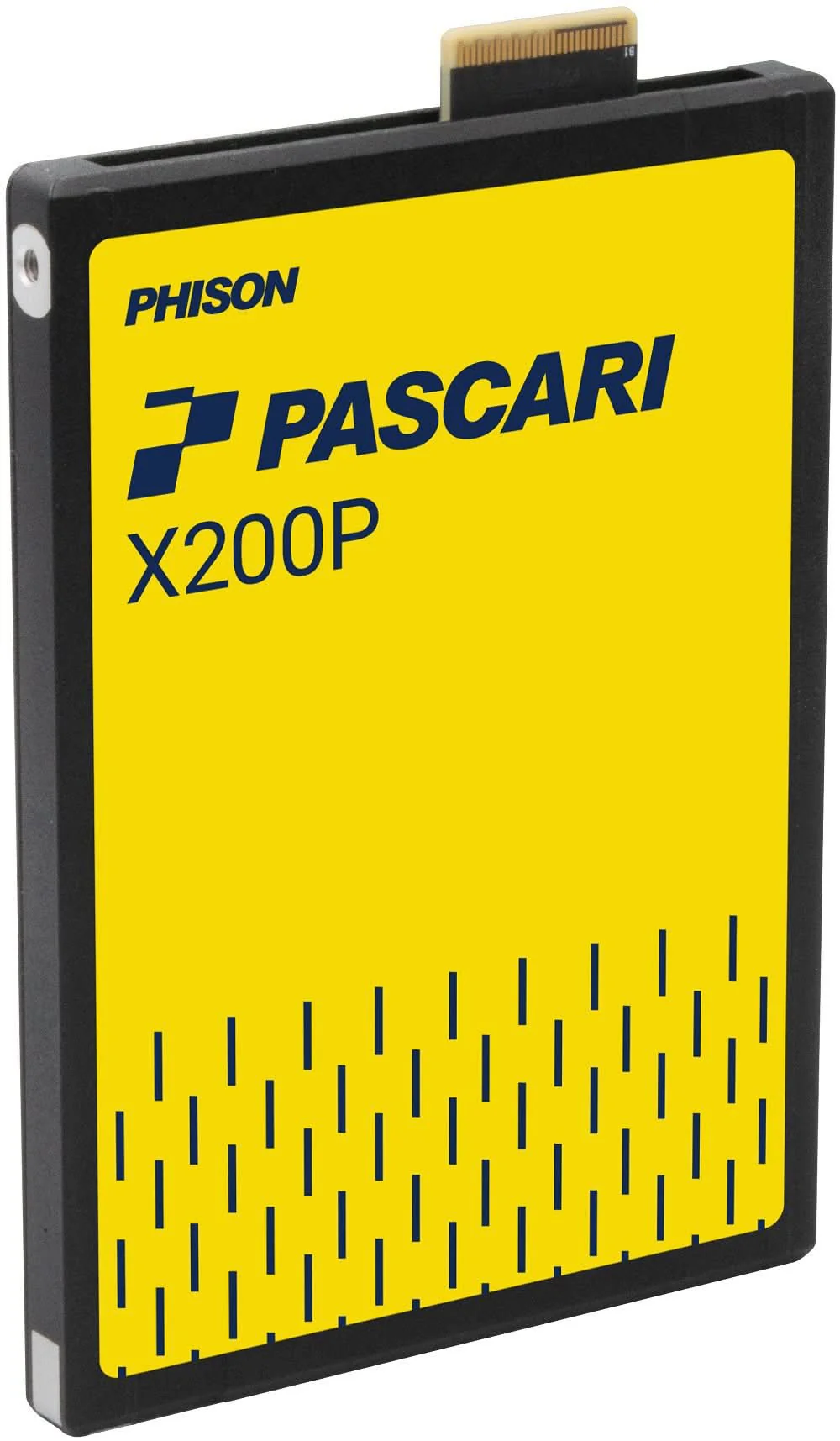

Product image 1

PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 PCIE Dual Port ISE SSD

Overview

 PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Dual Port ISE SSD

Specifications

Model Number:  XX208H033T84P324T0910

Brand:   PHISON

Alt Part Number(s):    XX208H033T84P324T0910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX208H033T84P324T0910

Capacities: 3.84 TB

Form Factor: U.2 15mm

PCIe Interface: PCIe Gen5 x4

Port Configuration: Dual port 2x2 lanes

Advanced Error Reporting: PCIe AER (Advanced Error Reporting)

Compliance: PCI Express Base Specification Rev. 5.0

NVMe Specification: NVM Express Base Specification Rev. 2.0

NVMe Management Interface: NVM Express Management Interface Rev 1.2

SFF Module Specification: PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7

Sequential Read: Up to 14,800 MB/s

Sequential Write: Up to 8,600 MB/s

Random Read: Up to 3,300K IOPS

Random Write: Up to 320K IOPS

Power Consumption 128K Active Read: 17 W

Power Consumption 128K Write: 21 W

Power Consumption 4KB Active Read: 17 W

Power Consumption 4KB Active Write: 22 W

Power Consumption 4KB 70 / 30 Random Read / Write: 18 W

Idle Power: 5 W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 7008 TB

Operating Temperature: 0°C - 70°C with specified airflow

Non-operating Temperature: -40°C - 85°C

Shock Operating: 500G, 2 ms

Shock Non-operating: 1000G, 0.5 ms

Vibration Operating: 2.17 Grms (7 - 800 Hz)

Vibration Non-operating: 16.3 Grms (10 - 2000 Hz)

Drop: 80 cm, 6 surfaces

Bending: 50 N, 60 s

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Ecological Compliance: RoHS compliant

LBA Formats: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes

Namespaces: 128

Port Type: Dual Port

Reservation Support: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

Encryption: Hardware AES-XTS 256-bit

SMBus Support: Yes

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

 PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Dual Port ISE SSD

Specifications

Model Number:  XX208H033T84P324T0910

Brand:   PHISON

Alt Part Number(s):    XX208H033T84P324T0910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX208H033T84P324T0910

Capacities: 3.84 TB

Form Factor: U.2 15mm

PCIe Interface: PCIe Gen5 x4

Port Configuration: Dual port 2x2 lanes

Advanced Error Reporting: PCIe AER (Advanced Error Reporting)

Compliance: PCI Express Base Specification Rev. 5.0

NVMe Specification: NVM Express Base Specification Rev. 2.0

NVMe Management Interface: NVM Express Management Interface Rev 1.2

SFF Module Specification: PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7

Sequential Read: Up to 14,800 MB/s

Sequential Write: Up to 8,600 MB/s

Random Read: Up to 3,300K IOPS

Random Write: Up to 320K IOPS

Power Consumption 128K Active Read: 17 W

Power Consumption 128K Write: 21 W

Power Consumption 4KB Active Read: 17 W

Power Consumption 4KB Active Write: 22 W

Power Consumption 4KB 70 / 30 Random Read / Write: 18 W

Idle Power: 5 W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 7008 TB

Operating Temperature: 0°C - 70°C with specified airflow

Non-operating Temperature: -40°C - 85°C

Shock Operating: 500G, 2 ms

Shock Non-operating: 1000G, 0.5 ms

Vibration Operating: 2.17 Grms (7 - 800 Hz)

Vibration Non-operating: 16.3 Grms (10 - 2000 Hz)

Drop: 80 cm, 6 surfaces

Bending: 50 N, 60 s

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Ecological Compliance: RoHS compliant

LBA Formats: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes

Namespaces: 128

Port Type: Dual Port

Reservation Support: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

Encryption: Hardware AES-XTS 256-bit

SMBus Support: Yes

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

$2,948.00
PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 PCIE Dual Port ISE SSD—
$2,948.00
