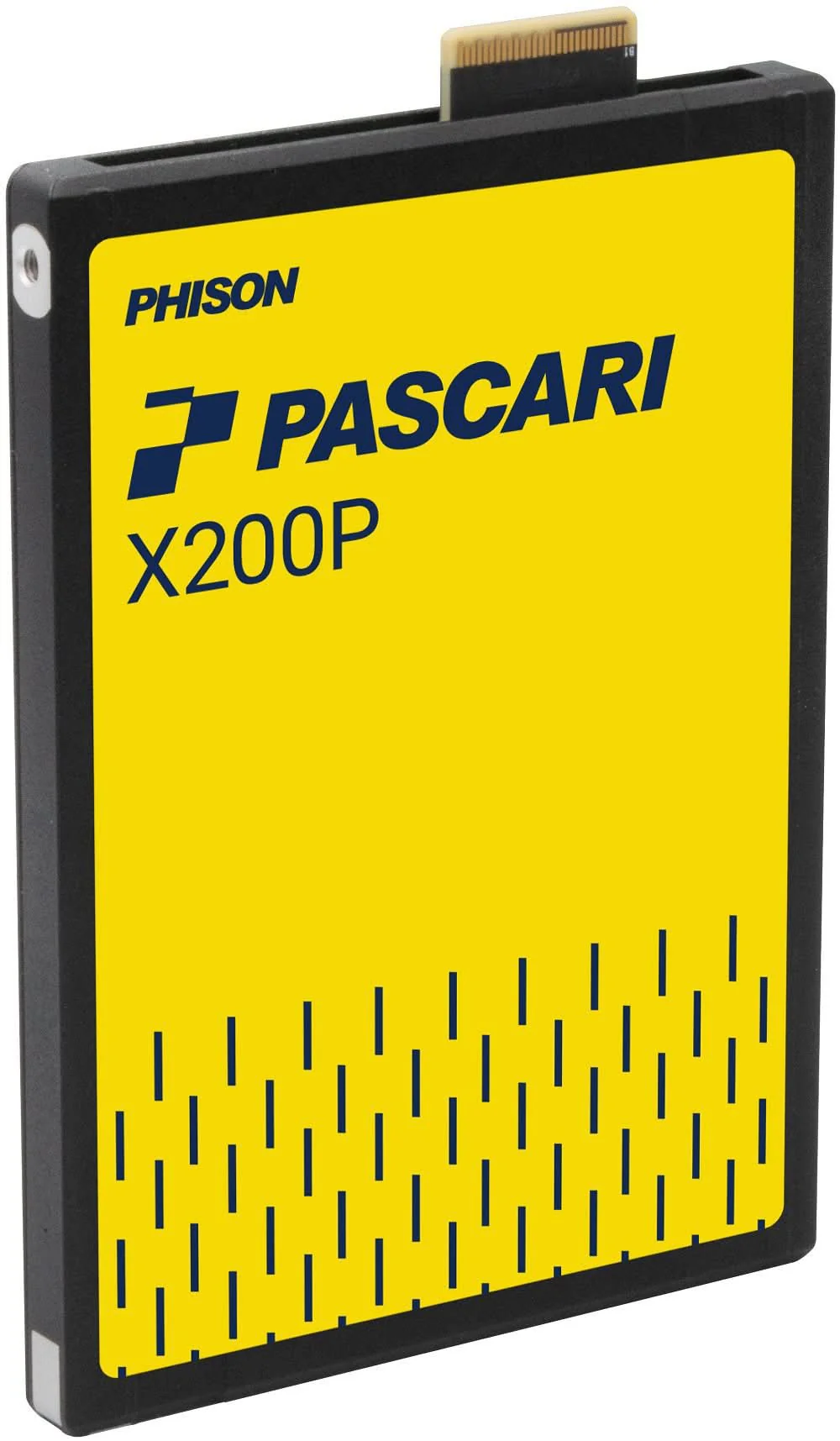

PHISON XX208H033T84P224T0910 Pascari X200P 3.84TB U.2 15mm Dual Port PCIe Gen5x4 Opal Security SSD
Overview
PHISON XX208H033T84P224T0910 Pascari X200P 3840 GB U.2 15mm Dual Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XX208H033T84P224T0910
Brand: PHISON
Alt Part Number(s): XX208H033T84P224T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX208H033T84P224T0910
Capacities: 3.84TB
Form Factor: U.2 15mm
PCIe Interface:
PCIe Gen5x4
Dual port 2x2 lanes
PCIe AER (Advanced Error Reporting)
Compliance:
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVM Express Management Interface Rev 1.2
PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7
Sequential Read: up to 14,800MB/s
Sequential Write: up to 8,600MB/s
Random Read: up to 3,300K IOPS
Random Write: up to 320K IOPS
128K Active Read (Avg. RMS): 17W
128K Write (Avg. RMS): 21W
4KB Active Read (Avg. RMS): 17W
4KB Active Write (Avg. RMS): 22W
4KB 70/30 Random READ/WRITE (Average RMS, W): 18W
Idle Power: 5W
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 7.008TB
Operating Temperature: 0°C - 70°C with specified airflow
Non-Operating Temperature: -40°C - 85°C
Shock (Operating): 500G, 2ms
Shock (Non-Operating): 1000G, 0.5ms
Vibration (Operating): 2.17 Grms (7 - 800 Hz)
Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)
Drop: 80cm, 6 surfaces
Bending: 50N, 60s
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
Namespaces: 128
Dual Port: Supported
Reservation: Supported
Metadata Protection: Supported
Thermal Throttling: Supported
Power Loss Protection: Supported
Hardware AES-XTS 256-bit Encryption: Supported
SMBus Support: Yes
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
