Overview

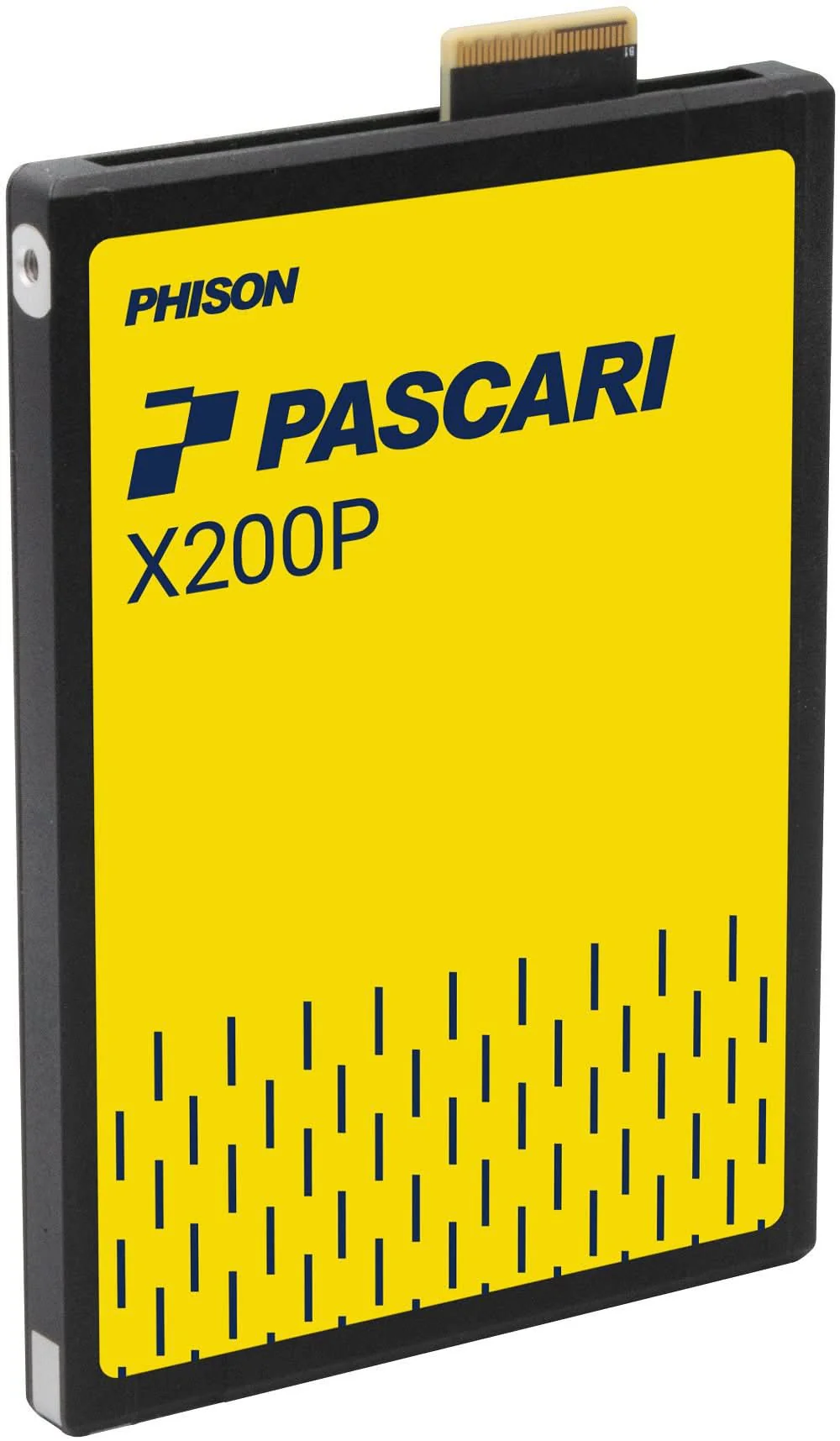

PHISON XX208H0315T3P3116T310 Pascari X200P 15.36TB U.2 15mm PCIE 5.0 Dual Port ISE SSD

Specifications

Model Number:  XX208H0315T3P3116T310

Brand:   PHISON

Alt Part Number(s):    XX208H0315T3P3116T310

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX208H0315T3P3116T310

Capacity: 15.36TB

Form Factor: U.2 15mm

Interface: PCIe Gen5 x4

Port: Dual port 2x2 lanes

PCIe AER: Advanced Error Reporting

PCIe Compliance: PCI Express Base Specification Rev. 5.0

NVMe Compliance: NVMe Base Specification Rev. 2.0

NVMe Management Interface: Rev. 1.2

Module Specification: PCIe SFF-8639 Rev. 5.0, Version 0.7

Sequential Read: up to 14,800MB/s

Sequential Write: up to 8,500MB/s

Random Read (IOPS): up to 2,800K

Random Write (IOPS): up to 420K

128K Active Read (Avg. RMS): 19W

128K Active Write (Avg. RMS): 23W

4KB Active Read (Avg. RMS): 21W

4KB Active Write (Avg. RMS): 24W

4KB 70/30 Random Read/Write (Avg. RMS): 23W

Idle Power: 5W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 28.032TB

Operating Temp (°C): 0 - 70 (with specified airflow)

Non-Operating Temp (°C): -40 - 85

Shock (Operating): 500G, 2ms

Shock (Non-Operating): 1000G, 0.5ms

Vibration (Operating): 2.17 Grms (7 - 800 Hz)

Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)

Drop: 80cm, 6 surfaces

Bending: 50N, 60s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

RoHS Compliant: Yes

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Namespaces: 128

Dual Port Support: Yes

Reservation Support: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

Encryption: Hardware AES-XTS 256-bit

SMBus Support: Yes

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
