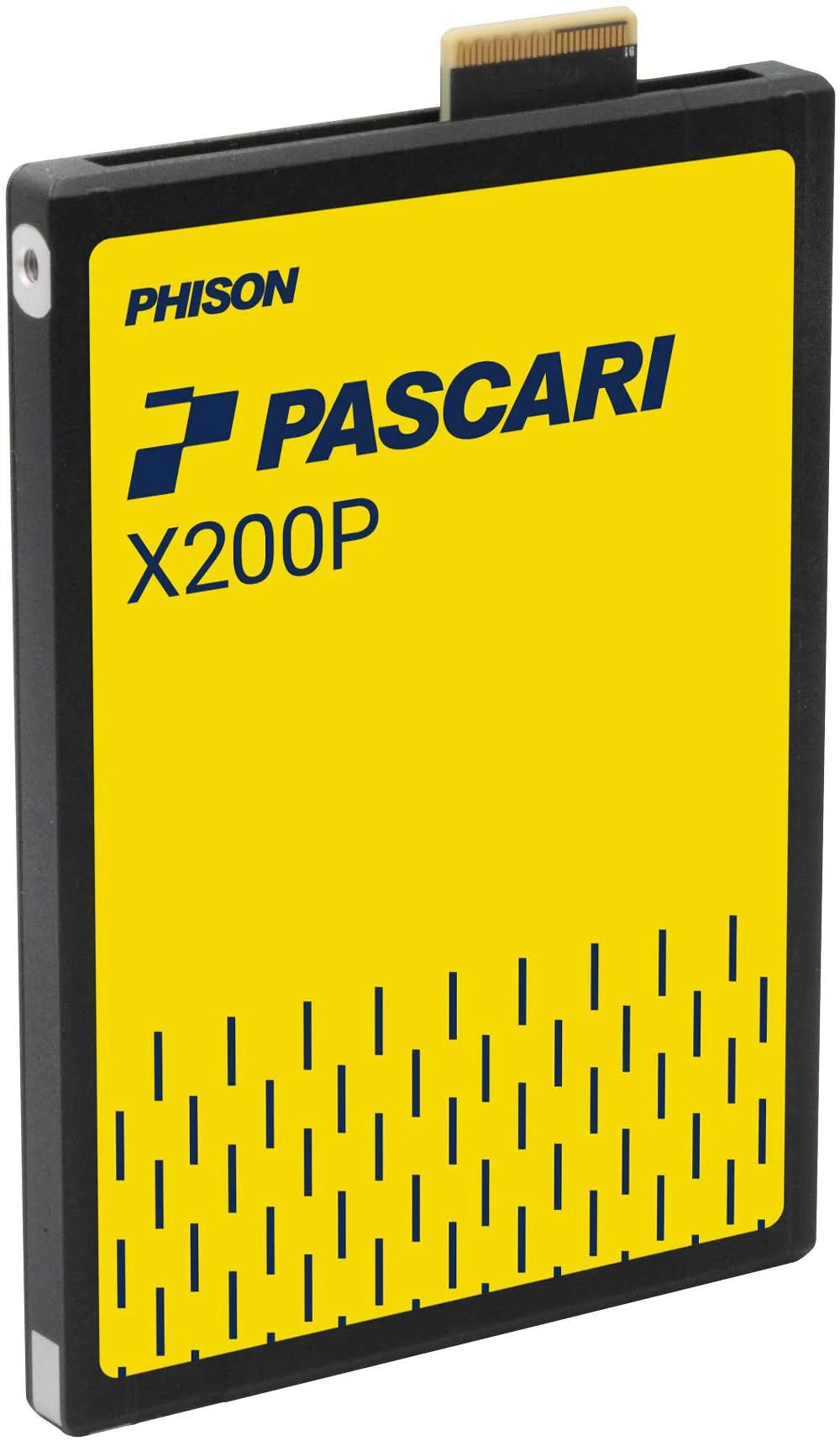

PHISON Pascari X200P XX208H0315T3P2116T310 15.36TB U.2 15mm PCIE 5.0 Dual Port SED Solid State Drive
Overview
PHISON XX208H0315T3P2116T310 Pascari X200P 15.36TB U.2 15mm PCIE 5.0 Dual Port SED SSD
Specifications
Model Number: XX208H0315T3P2116T310
Brand: PHISON
Alt Part Number(s): XX208H0315T3P2116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX208H0315T3P2116T310
Capacity: 15.36 TB
Form Factor: U.2 15mm
Interface: PCIe Gen5 x4 (Dual Port 2x2 lanes)
Advanced Error Reporting: PCIe AER
Compliance:
PCI Express Base Spec Rev. 5.0
NVMe Base Spec Rev. 2.0
NVMe-MI Rev. 1.2
PCIe SFF-8639 Module Spec Rev. 5.0, Ver. 0.7
Sequential Read: up to 14,800 MB/s
Sequential Write: up to 8,500 MB/s
Random Read: up to 2,800K IOPS
Random Write: up to 420K IOPS
Active Power (128K Read, Avg. RMS): 19 W
Active Power (128K Write, Avg. RMS): 23 W
Active Power (4K Read, Avg. RMS): 21 W
Active Power (4K Write, Avg. RMS): 24 W
Active Power (4K 70/30 R/W, Avg. RMS): 23 W
Idle Power: 5 W
MTBF (million hours): 2.5
UBER: < 1 sector per 10¹⁸ bits read
DWPD: 1
TBW: 28.032 TB
Operating Temp. (°C): 0 – 70 (with airflow)
Non-Operating Temp. (°C): -40 – 85
Shock (Operating): 500 G, 2 ms
Shock (Non-Operating): 1000 G, 0.5 ms
Vibration (Operating): 2.17 Grms (7–800 Hz)
Vibration (Non-Operating): 16.3 Grms (10–2000 Hz)
Drop: 80 cm, 6 surfaces
Bending: 50 N, 60 s
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Environmental Compliance: RoHS
Features:
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus Support
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
