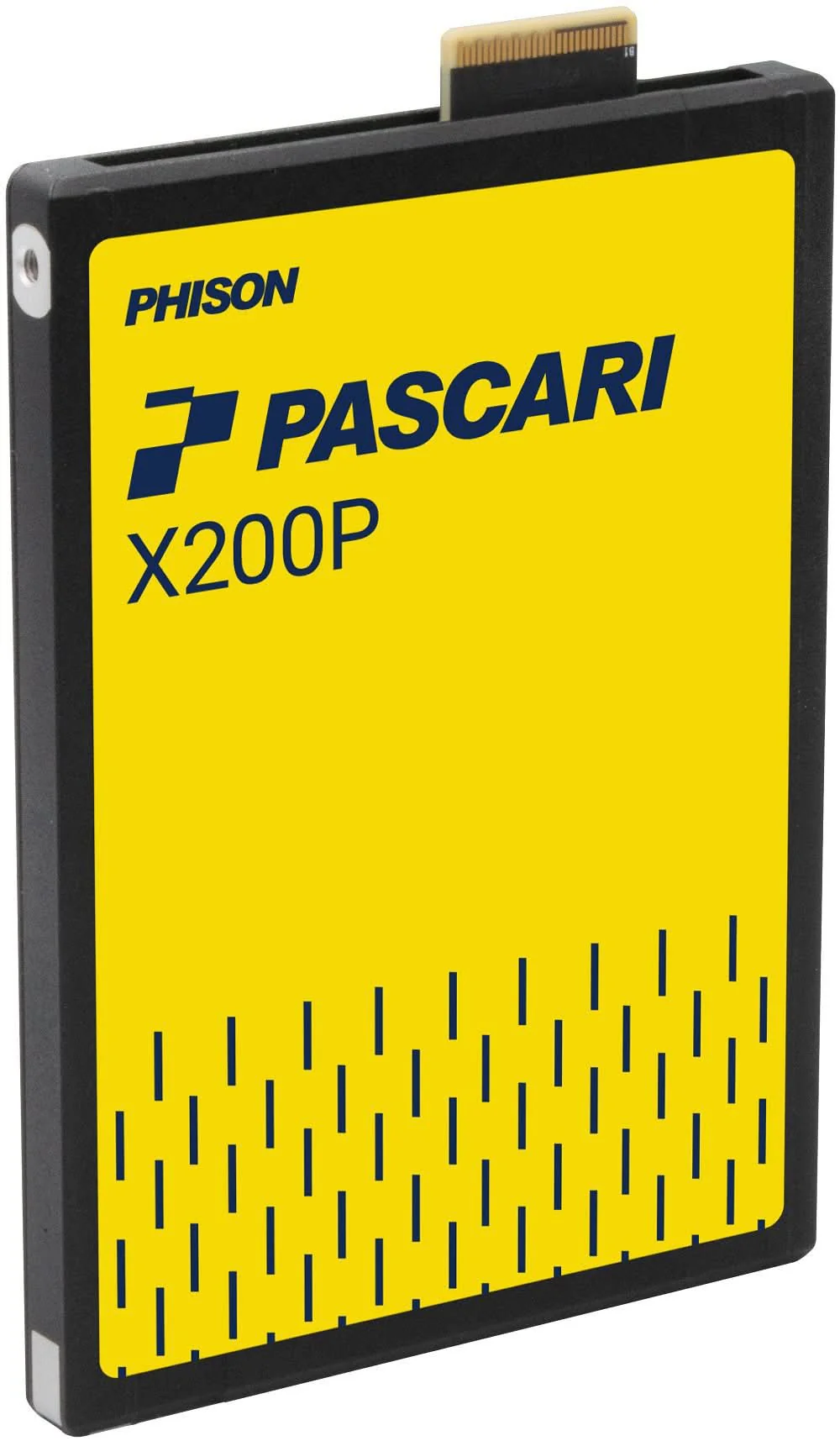

PHISON XX208H027T68P228T1910 Pascari X200P 7.68TB U.2 PCIe 5.0 2x2 Dual Port SED SSD
Overview
PHISON XX208H027T68P228T1910 Pascari X200P 7.68TB U.2 PCIe 5.0 2x2 Dual Port SED SSD
Specifications
Model Number: XX208H027T68P228T1910
Brand: PHISON
Alt Part Number(s): XX208H027T68P228T1910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX208H027T68P228T1910
Capacity: 7.68 TB
Interface: PCIe 5.0 2x2
NVMe: 2.0
NAND Flash: 3D TLC
Performance
Sequential Read (MB/s): 14,800
Sequential Write (MB/s): 8,700
4K Random Read (IOPS): 3,200K
4K Random Write (IOPS): 390K
Read Latency (Typ., μs): 60
Write Latency (Typ., μs): 10
Power Consumption
Active (W): 23
Idle (W): 5
Endurance/Reliability
DWPD: 1
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Temperature
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Overview
PHISON XX208H027T68P228T1910 Pascari X200P 7.68TB U.2 PCIe 5.0 2x2 Dual Port SED SSD
Specifications
Model Number: XX208H027T68P228T1910
Brand: PHISON
Alt Part Number(s): XX208H027T68P228T1910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX208H027T68P228T1910
Capacity: 7.68 TB
Interface: PCIe 5.0 2x2
NVMe: 2.0
NAND Flash: 3D TLC
Performance
Sequential Read (MB/s): 14,800
Sequential Write (MB/s): 8,700
4K Random Read (IOPS): 3,200K
4K Random Write (IOPS): 390K
Read Latency (Typ., μs): 60
Write Latency (Typ., μs): 10
Power Consumption
Active (W): 23
Idle (W): 5
Endurance/Reliability
DWPD: 1
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Temperature
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Original: $5,892.00
-70%$5,892.00
$1,767.60Description
