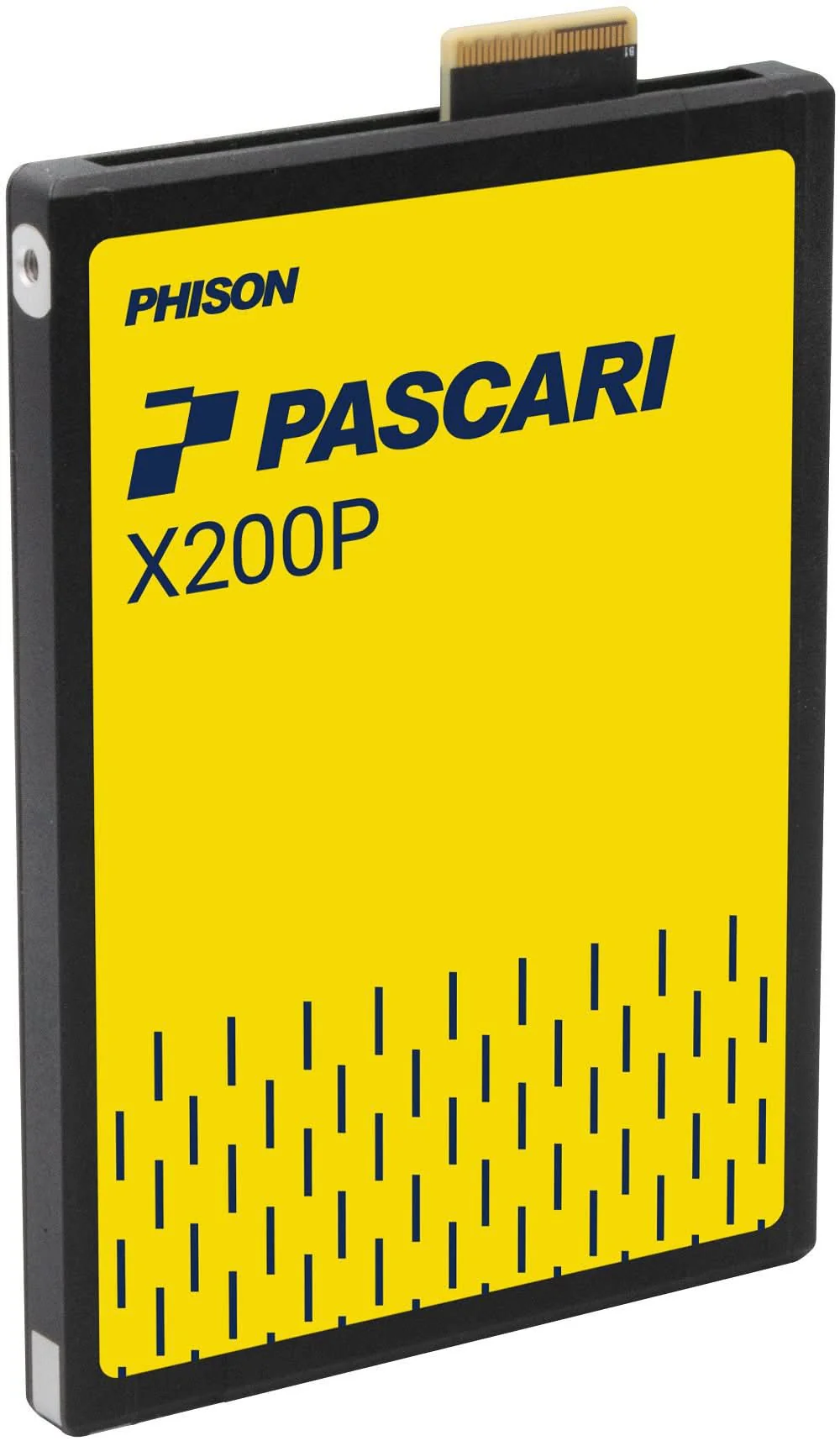

PHISON XP20DH037T68P218T1910 Pascari X200P 7680 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:  XP20DH037T68P218T1910

Brand:   PHISON

Alt Part Number(s):    XP20DH037T68P218T1910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP20DH037T68P218T1910

Storage Capacity: 7.68 TB

Form Factor: E3.S

Security: Opal

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCIe Gen5 x4 (Single Port)

Compliance:

• PCI Express Base Specification Rev. 5.0
• NVM Express Base Specification Rev. 2.0
• NVM Express Management Interface Rev. 1.2
• PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Type: 3D eTLC

Flash Configuration: 512 GB x 16

Performance:

• Maximum Sequential 128KB Read/Write (QD=32, Workers=1): 14,000 / 8,500 MB/s
• Maximum 4K Sustained Random Read/Write (QD=64, Workers=8): 3,000,000 / 400,000 IOPS
• Latency 4K Sustained Random Read/Write (µs):
    - 60 / 10 (QD=1, Workers=1)
    - 85 / 160 (QD=4, Workers=8)
    - 190 / 1500 (QD=64, Workers=8)
• IOPS Consistency 4KB Sustained Random Read/Write: 95% / 95%
• 4KB Sustained Random Read/Write Quality of Service (QoS=99%):
    - 80 / 12 (QD=1, Workers=1)
    - 120 / 160 (QD=4, Workers=8)
    - 450 / 1500 (QD=64, Workers=8)

Power Consumption:

• Active Power: 25 W
• Inrush Current: 2.5 A
• Idle Power: < 9 W

Endurance (DWPD): 1

Endurance (TBW): 14,016 TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read (3D NAND)

LBA Formats: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Advanced Flash Management:

• ECC
• Static and Dynamic Wear Leveling
• Bad Block Management
• Deallocate (TRIM) Command
• SMART
• Over-Provisioning
• Firmware Upgrade

Temperature Range:

• Operating: 0°C to 70°C (with specified airflow)
• Storage: -40°C to 85°C

Data Retention: 3 months

Enterprise Features Support:

• Namespace
• Single Port
• Reservation
• Metadata Protection
• Thermal Throttling
• Power Loss Protection
• Hardware AES-XTS 256-bit Encryption
• SMBus Support
• NVMe-MI (Management Interface) Support

RoHS Compliance: Yes

Supply Voltage:

• 12V ±10% (Noise level: 240mVp-p, 0–20 MHz)
• 12V Minimum Off Time: 500 ms
• 3.3V Aux ±15%
